XCMG 55 ton truck crane spare parts QY55KA_Y crane parts list for sale
Description
Recommendation
XCMG 55 ton truck crane spare parts QY55KA_Y crane parts
list.

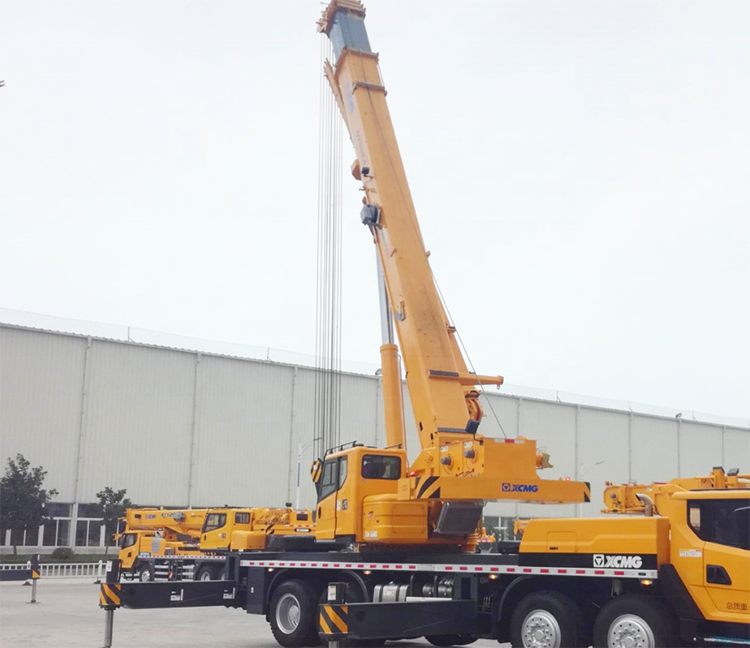

XCMG
QY55KA_Y newly upgraded 55-ton truck crane with compact structure and highest
operating performance in the industry.
1.
Leading lifting and driving performances
Five
section U-type booms. The boom length is 11.4m-43.5m with strong lifting
performance, leading 5%-10% ahead of products with the same tonnages in the
same industry.
High-power
engine with good dynamic performance, strong gradeability and superior
trafficability. The maximum gradeability and maximum travel speed respectively
are 42% and 85km/h.
2.
Reliability of heat dissipation, electrical system etc. has been improved with
safer operation and driving
Waterproof
connector clip. It is equipped with rubber sheath inside with excellent water
impervious and level of protection reaches to IP65.
3.
Mature and reliable double-pump confluence technique, maintaining the
advantages of efficient operation
The
double-pump confluence technique is adopted in raising and falling of winch,
extending and retracting of lazy boom and luffing, leading ahead of luffing and
extending and retracting operations.
4.
Air-aid shift gears and 45% of shifting force is reduced
The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
|
Serial number |
name |
Item number |
Quantity |
|
1 |
GF-185 counter (REC-SQ1000(1:380) coexist) |
803500378 |
2 |
|
2 |
JK412 start lock |
803072051 |
4 |
|
3 |
Electric throttle 401237 (coexist with 803611230/803611239) |
803611116 |
2 |
|
4 |
HSK-1 rear marker light (with DELPHI waterproof connector) |
803505905 |
10 |
|
5 |
25EY-D6L solenoid valve |
803000133 |
1 |
|
6 |
SBPHC260 balance spool |
803000115 |
8 |
|
7 |
SDHI-0631/2 solenoid valve |
803001172 |
2 |
|
8 |
SDHI-0631/2/A solenoid valve |
803001173 |
2 |
|
9 |
4WE6Y-A/D 24T solenoid valve |
803007064 |
2 |
|
10 |
4WE6Y6X/EG24NZ4 solenoid directional valve |
819904695 |
2 |
|
11 |
4WE6D solenoid valve |
803001171 |
2 |
|
12 |
Electro-hydraulic directional valve solenoid valve 4WE5Y |
803001146 |
2 |
|
13 |
QY35K.02.4.8-1 pulley |
111701483 |
10 |
|
14 |
QY40K.02.5.4-1 pulley |
111900321 |
10 |
|
15 |
QY35K.90.1-2 wedge |
111701470 |
4 |
|
16 |
40 tons-70 tons big hook insurance card (spare parts) |
860145234 |
4 |
|
17 |
12 tons-70 tons small hook insurance card (spare parts) |
860145233 |
4 |
|
18 |
HSJZJ-QY winch monitoring device (including rearview mirror) |
819911637 |
4 |
|
19 |
Force limiter length measuring line |
819902783 |
4 |
|
20 |
Height limit switch A2B-Z (Hirschmann material number: 217694) |
803601667 |
6 |
|
21 |
QY50KA.02.6.5 fine cable II |
112104984 |
2 |
|
22 |
Oil-water separator filter element VG1540080211 (for XCMG) |
860126528 |
100 |
|
23 |
Diesel filter element VG1540080110 Euro III (import) (spare part) |
860122422 |
100 |
|
24 |
Machine filter VG61000070005 (for XCMG) |
860126525 |
100 |
|
25 |
Air filter AF25277 (for XCMG) |
860126532 |
100 |
|
26 |
BWG-2 bellows assembly |
801900218 |
4 |
|
27 |
VG1200090067 V-belt (spare part) |
860123506 |
6 |
|
28 |
CP1604EP010 or KL1604PE3-010 clutch cylinder |
803000377 |
2 |
|
29 |
Engine front support |
800100121 |
4 |
|
30 |
99100590031 Engine rear support |
800100120 |
4 |
|
31 |
XZ100K.55.1.1 one leaf spring |
801700205 |
4 |
|
32 |
XZ100K.55.1.1 Two leaf springs |
801700206 |
4 |
|
33 |
A 10/14-782 (sheath) hose assembly, brake hose |
803102161 |
6 |
|
34 |
KL3555EI-B010 dryer (with backflow stop valve) |
819947893 |
10 |
|
35 |
23JVD3S.1 or DF2612A solenoid valve |
803000010 |
2 |
|
36 |
EQ140 left rear signal lamp (DELPHI plug) |
803543393 |
5 |
|
37 |
EQ140 right rear signal lamp (DELPHI plug) |
803543394 |
5 |
|
38 |
HWD-1 rear fog lamp (DELPHI connector) |
803545629 |
5 |
|
39 |
QY16K.70II.2II brush assembly (with CAN function) |
130202248 |
1 |
|
40 |
MZJ-50A/006 start relay |
803600742 |
2 |
|
41 |
37XZ300-04100 Ignition switch assembly (Xugong Automobile) (spare part) |
860130916 |
4 |
|
42 |
61XZ300-05070 Left door lock core assembly (Xugong Automobile) (spare
parts) |
860130917 |
6 |
|
43 |
61XZ300-05080 right door lock core assembly (Xugong Automobile) (spare
parts) |
860130918 |
6 |
|
44 |
42XZ25-11010 narrow body power take-off assembly (Xugong Automobile) |
860122578 |
3 |
|
45 |
SH1264-1602510E clutch master cylinder (spare part) |
860122437 |
3 |
|
46 |
41XZ25A-11010 Left turn signal assembly (Xugong Automobile) (spare
parts) |
860148767 |
10 |
|
47 |
41XZ25A-11020 Right turn signal assembly (Xugong Automobile) (spare
parts) |
860148768 |
10 |
|
48 |
SO-K8L-J7 Hydraulic two-way lock |
803000738 |
10 |
|
49 |
QC25/13-XZA or ZCB125-250/130X steering oil pump |
803000394 |
3 |
|
50 |
Power steering cylinder |
803007015 |
3 |
|
51 |
Z26151060 rubber spring assembly |
860144439 |
8 |
|
52 |
1163134008I gear pump (quadruple) |
803073887 |
2 |
|
53 |
50-ZC radiator assembly |
135604996 |
2 |
|
54 |
Front vertical oil cylinder assembly (Xu Ye) |
135606005 |
2 |
|
55 |
Rear vertical oil cylinder assembly (Xu Ye) |
135606006 |
2 |
|
56 |
QY60.76 fifth outrigger cylinder assembly (Xu Ye) |
135800891 |
2 |
