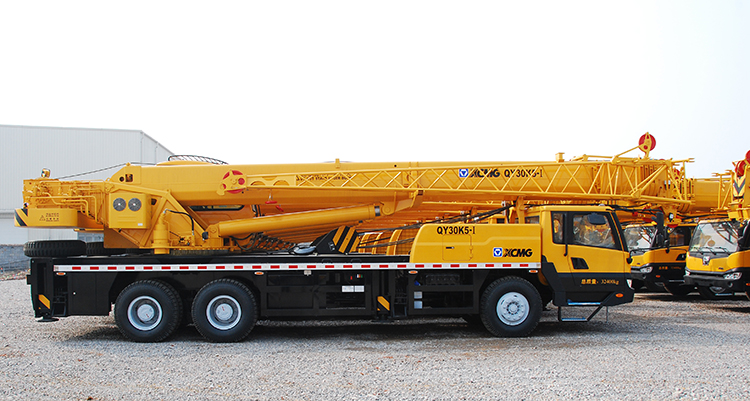

XCMG Official 30 Ton Crane Truck QY30K5-I China Truck with Crane for Sale.



1.  Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.



2.  Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.



3.  Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.



4.  Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.



5.  Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.

Description

Unit

Parameter value

Overall length

mm

12570

Overall width

mm

2500

Overall Height

mm

3390

Wheel Base

mm

5025+1350

Track

mm

2074/1834/1834

Total vehicle mass in travel configuration

kg

32400

Axle load   Front axle

kg

7600

Axle load  Rear axle

kg

24800

Engine Model



SC8DK280Q3

Engine rated power

kw/(r/min)

206/2200

Engine rated torque

N.m/(r/min)

1112/1400

Max. travel speed

km/h

80

Min. turning diameter

m

22

Min. ground clearance

mm

291

Max. grade ability

%

40

Approach angle

°

19

Departure angle

°

13

Braking distance (at 30 km/h, full load )

m

10

Oil consumption per 100km

L

40

Exterior noise level during acceleration traveling

dB (A)

88

Noise level at seated position

dB (A)

90




uMore truck-crane

collectPng
Favorites
Inquiry
Application
Construction
BrandName
XCMG
Certification
CE/ISO9001
ModelNumber
QY30K5-I
Max.LiftingHeight
48m
Max.LiftingLoad
PlaceofOrigin
China
RatedLiftingMoment
1025KN.m
RatedLoadingCapacity
30t
Span
modelname
Truckcranes
