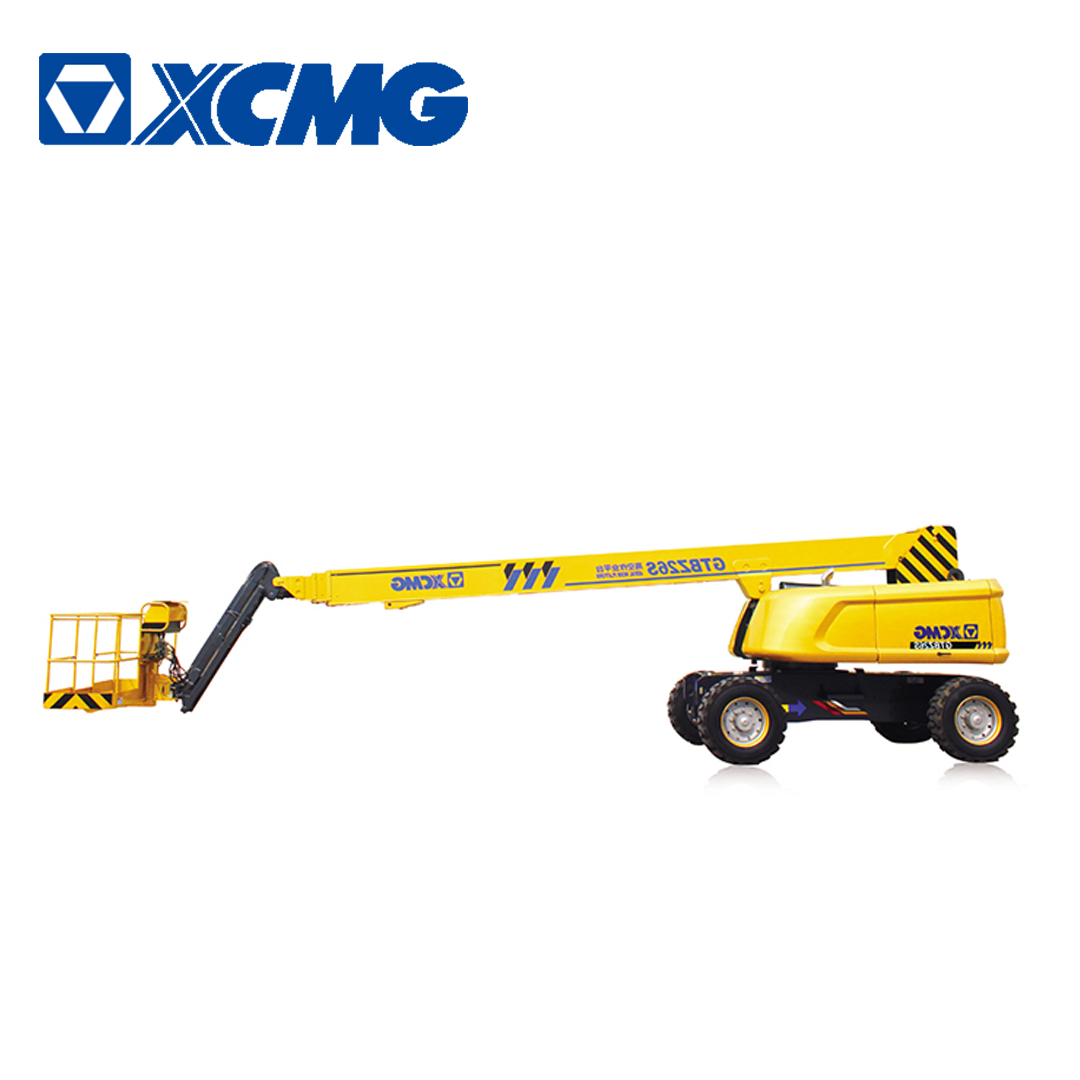

XCMG Official 26m Telescopic Aerial Work Platform GTBZ26S

The boom driven by a single cylinder and the synchronously amplitude-varying and lifted stand column enhance the operating speed, and realize the fast access to the construction area, which will improve the construction efficiency.

2、Better Adaptability to Poor Construction Enviroment

The application of a lubrication-free shaft sleeve and slider relieves the friction between each hinge point for connection and inter-arm slider, thus resulting in better adaptability to welding and dusty enviromeent.

3.Advanced power system integration control

Electronic-controlled engine is adopted as the dynamical system, oil pressure, water temperature, rotating speed, sensor etc. are integrated by engine and controlled through ECU, which is safe and reliable. Meanwhile, there is a fault diagnosis interface as supporting for convenient of fault diagnosis and maintenance.

Description	Unit	Parameter value
Overall Length	mm	12100
Overall Width	mm	2490
Overall Height	mm	3050
Wheel Base	mm	3000
Maximum Working Height	m	27.9
Maximum Platform Height	m	26.2
Maximum Working Range	m	23.2
Maximum Load Capacity	kg	340
Boom luffing Range	°	-5～+75
Crank Arm Luffing Range	°	-65～+70
Rotation Angle of Rotating Platform	°	360
Maximum Tail Wagging	mm	1400
Platform Size	mm	2400×900/1800×800
Rotation Angle of Platform	°	180
Total Weight	kg	16600
Maximum Travel Speed	km/h	6.1
Minimum Turning Radius	m	6.7
Minimum Ground Clearance	mm	320
Maximum Grade Ability	%	45
Tire Specification		385/65-22.5
Engine Model		Foton CumminsQSF2.8-71HP
Rated Power of Engine	kW/(r/min)	53/(2200)
