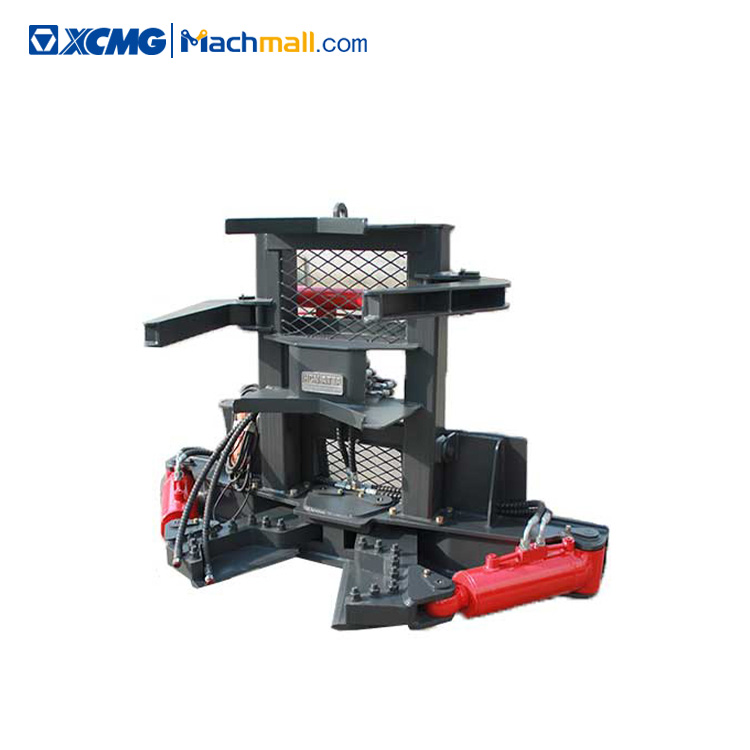

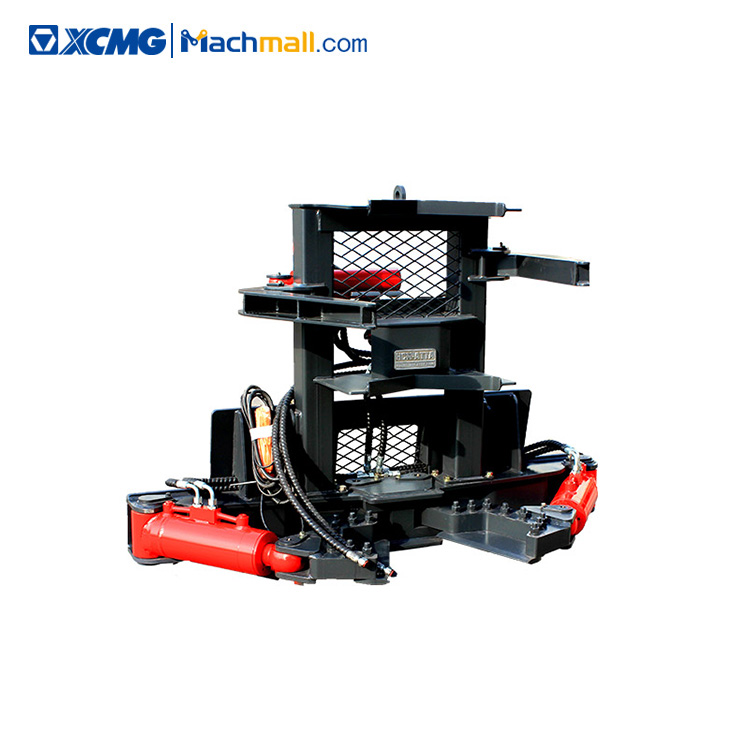

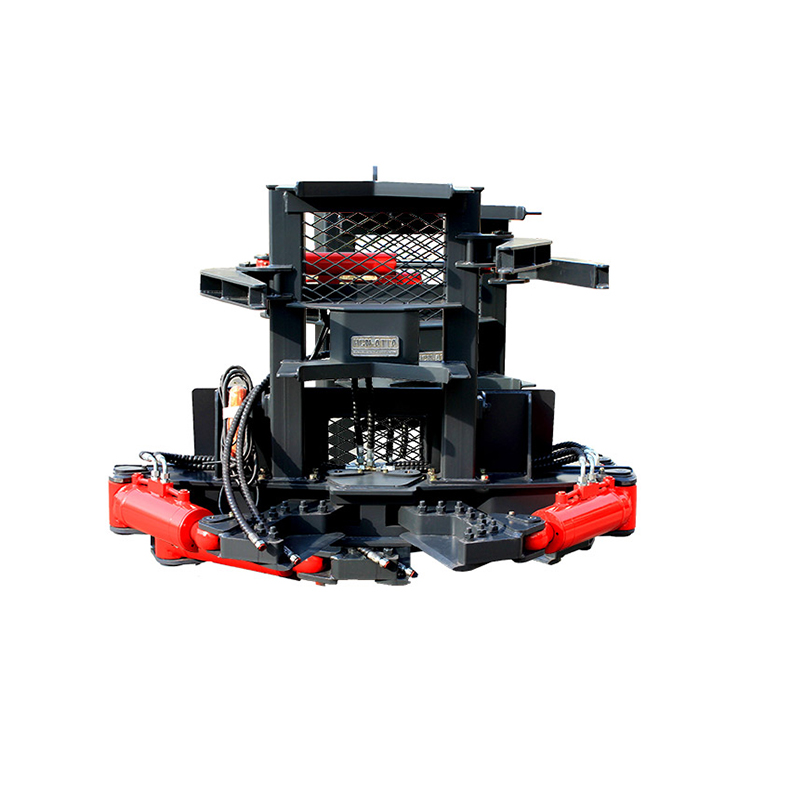

XCMG official 0512 Series skid steer attachments hydraulic tree shear
This attachment is suitable is skid steer loader, wheel loader, excavator etc. Through the expansion of the hydraulic oil cylinder, push the cutting head closed or opened to cut off the tree trunk. The proper tree dia. is 0-400mm. With stable and powerful action, safety and reliability, and greatly reduced the labor intensity of the workers. This tree shears with clamping mechanism, reliable and convenient operated.
We can provide you brand NEW & USED machines as well as the SPARE PARTS and ATTACHMENTS for XCMG equipment.
Please feel free to contact us for further communication.
0512 Tree Shear | ||
Model | 051212H | 051216H |
Overall Width (mm) | 1900 | 2300 |
Overall Height (mm) | 1255 | 1455 |
Overall Length (mm) | 860 | 895 |
Tree Shear Dia.(mm) | 300 | 400 |
Overall Weight(kg) | 765 | 870 |
Suitable Pressure(MPa) | 16~21 | 16~21 |
Suitable Flow(L/min) | 50~75 | 50~75 |
Operating voltage (V) (optional) | DC12/DC24 | DC12/DC24 |
Volume (M3) | 3.4 | 4.7 |
