XCMG Official Foam Fire Truck AP60 for sale

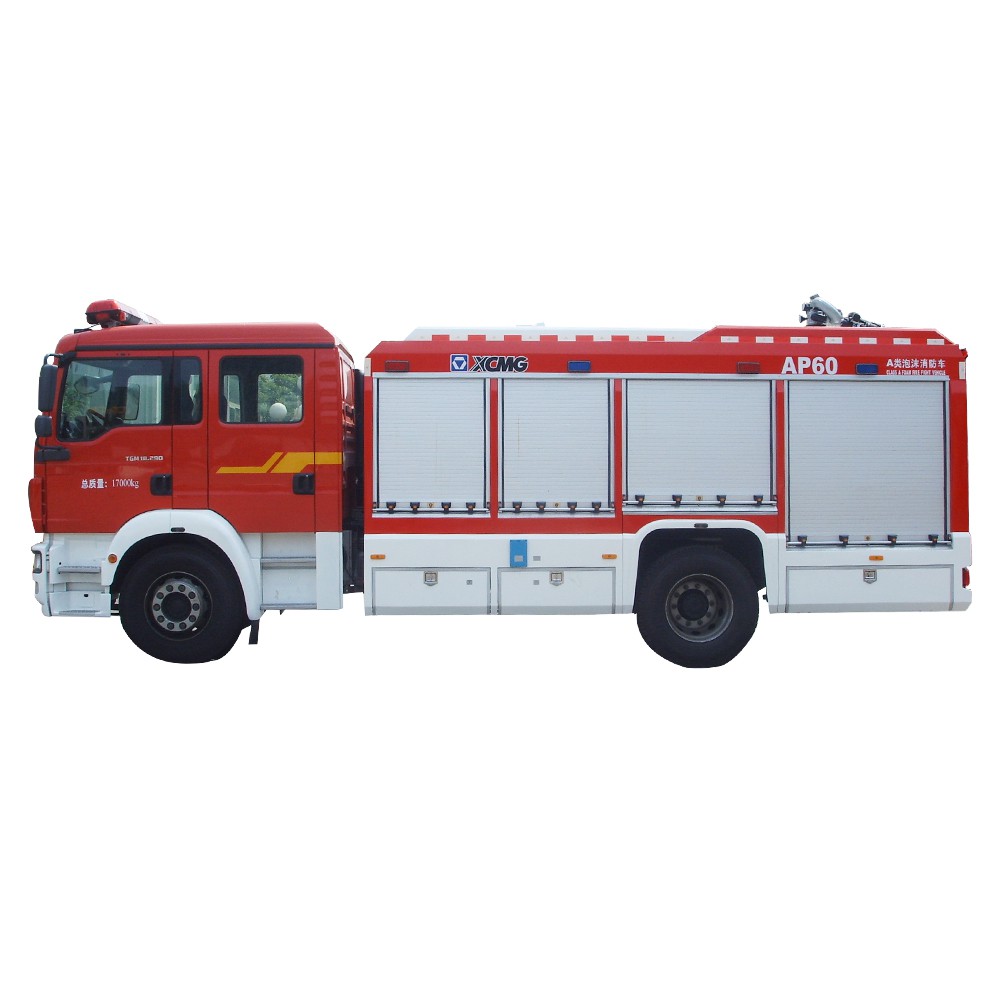

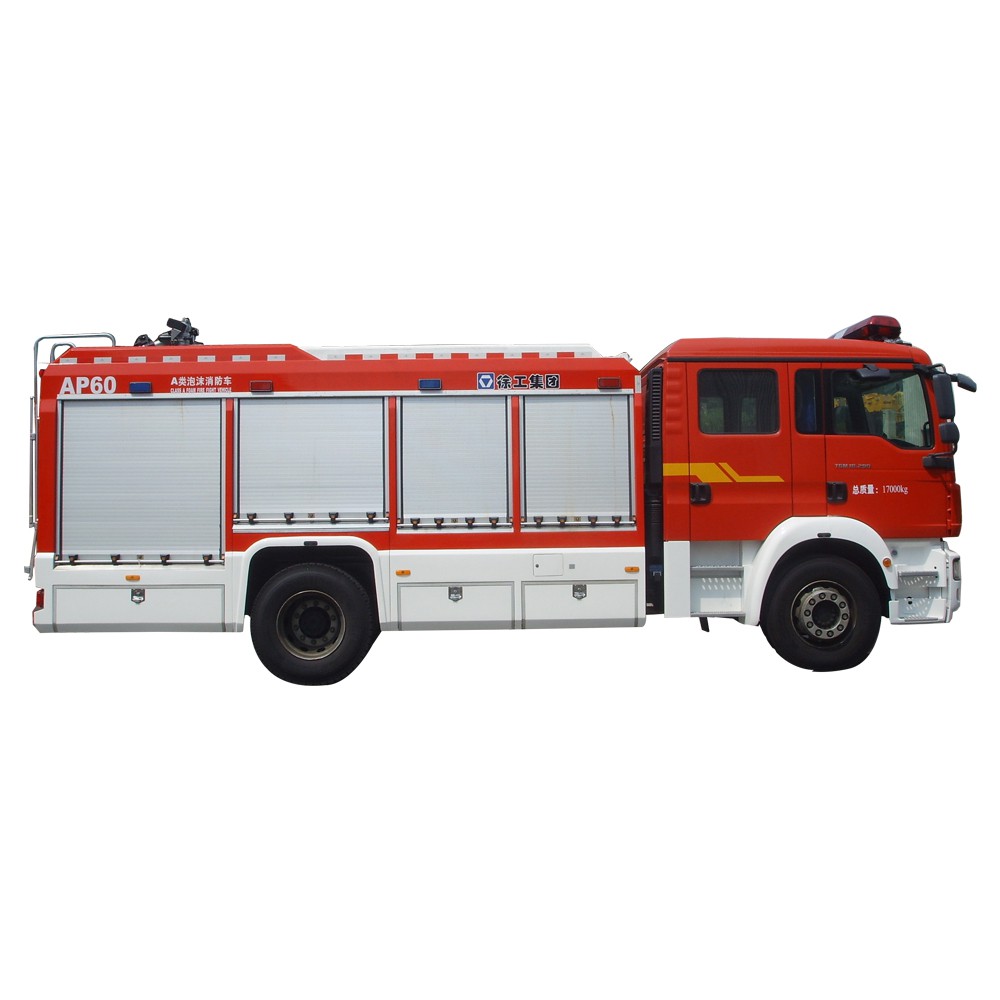

AP60 Compressed Air Foam Fire Truck

1.Strong single-vehicle operational capability

AP60 uses a TGM18.290 MAN chassis with double-row cabs, has strong dynamic performance, safe and reliable quality, allows 6 passengers, and applies to centralized delivery of fire-fighting combination.
2.Fire control system is convenient and efficient, and has high safety.

 A full-integration one-touch controlled compressed air foam system is easy to operate. Simple and practical B foaming system meets all kinds of fire suppression. With a remote control distance of more than 150 m, an electric remote control fire nozzle is safe to operate.
3.Security protection settings and high intelligence

The vehicle adopts a variety of safety protection devices to ensure that driving, rescue, and firefighting are safe and reliable. With details considered, multilayer storage compartment structures use light bars to realize multi-layer space lighting to meet usage requirements.

Description			Unit	Parameter value
Overall length			mm	8420
Overall width			mm	2490
Overall Height			mm	3400
Axle base			mm	4425
Wheelbase			mm	2066/1802
Front/rear suspension			mm	1400/2415
Front/rear extension			m	0/180
Maximum speed			km/h	≥90
Minimum turning diameter			m	≤17
Braking length (full load, initial braking speed 30 km/h)			m	≤10
Approach Angle/Departure Angle				≥20/12
Maximum climbing ability			%	≥25
Rated fire extinguishing agent Full load weight	Water		kg	4400
	Class-A foam liquid			330
	Class-B foam liquid		kg	1120
Curb weight	Total weight		kg	10700
	Front axle			4200
	Rear axle			6500
Maximum allowable value Total weight	Total weight		kg	17000
	Front axle			6200
	Rear axle			10800
Chassis Piece Parameter	Type			TGM18.290II
	Driving type			4×2
	Manufacturer			MAN\'s Production, German
	Engine	Type		D0836LFL30
		Fuel type		Diesel
		Displacement	ml	6871
		Power	kw	215
		Emission level		National IV Standard
		Manufacturer		MAN\'s Production, German
	Steel spring number			1/3
	Tire size			295/80R22.5
	Number of tires (excluding spare tires)			6
	Passengers allowed in the cab			2+6
Fire pump	Rated flow		L/s	≥70
	Rated pressure		MPa	≥1.0
	Absorbing water depth		m	≥7
	Time of drawing water		s	≤40
Fire monitor	Water monitor	Rated flow	L/s	64
		Type		PLKD64W-(Hurricane)XFIH-E**A-CN
		Rated pressure	MPa	≤1.0
		Range	m	≥65
	Foam monitor	Rated flow	L/s	64
		Type		PLKD64W-(Hurricane)XFIH-E**A-CN
		Rated pressure	MPa	≤1.0
		Range	m	≥60
Compressed air foam system	Dry foam	Flow	L/s	≥1.5
		Range	m	≥12
	Wet foam	Flow	L/s	≥3
		Range	m	≥20
