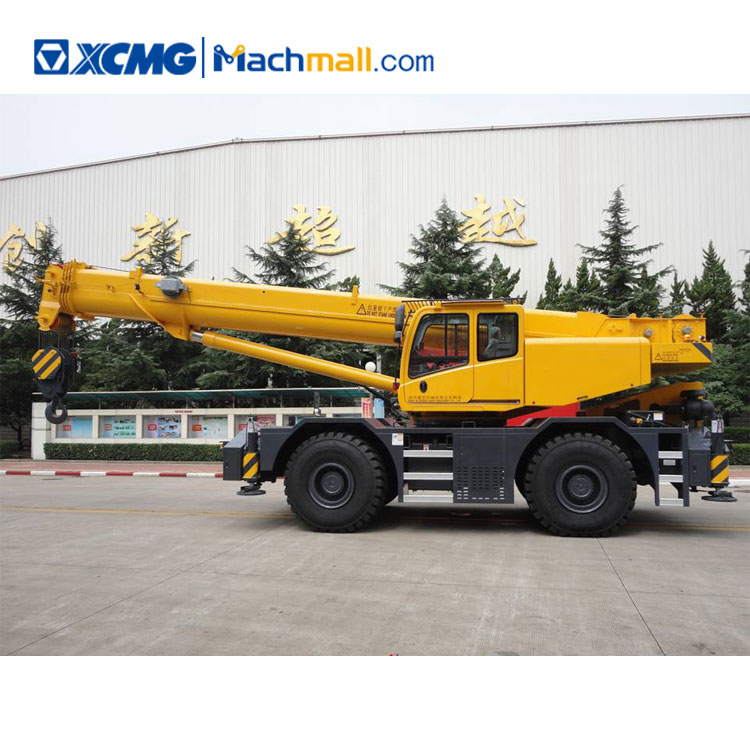

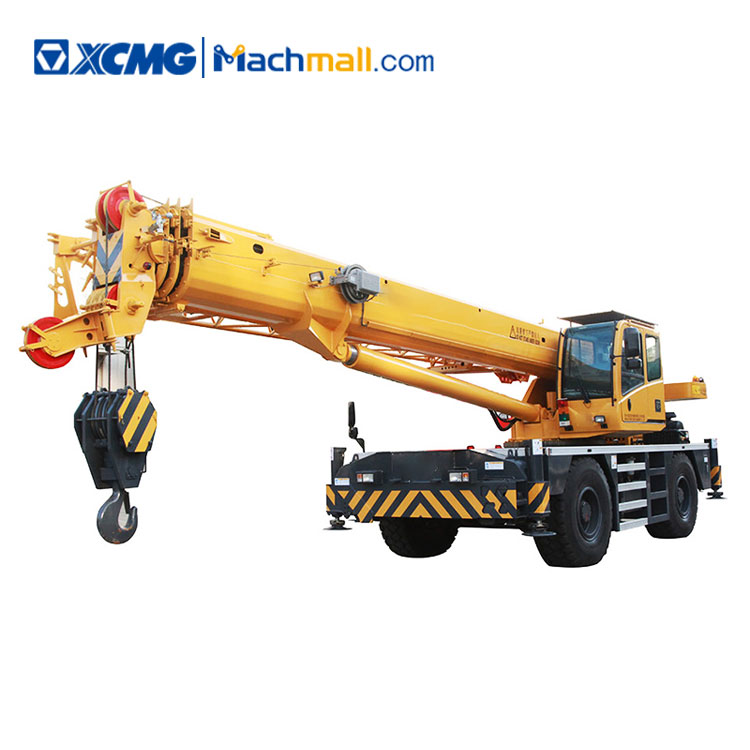

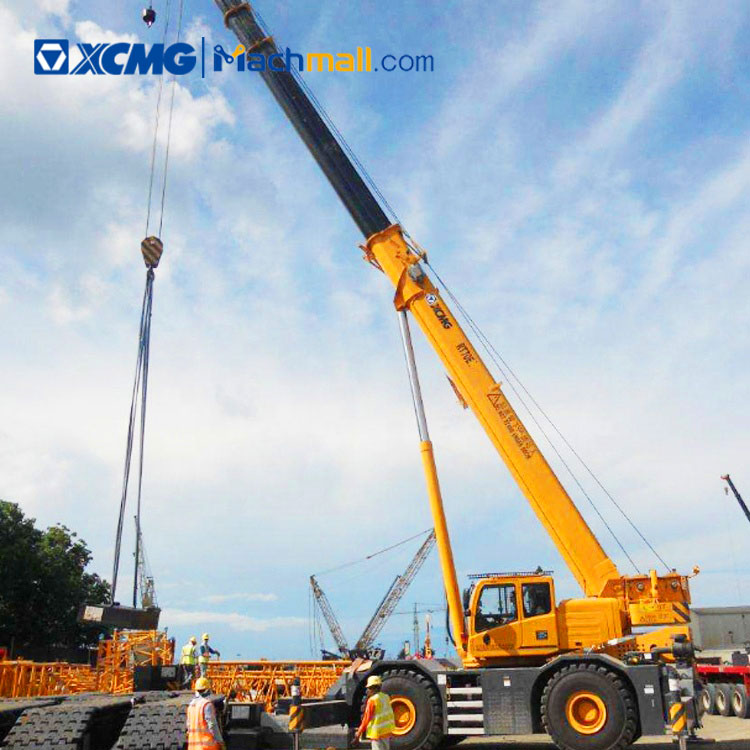

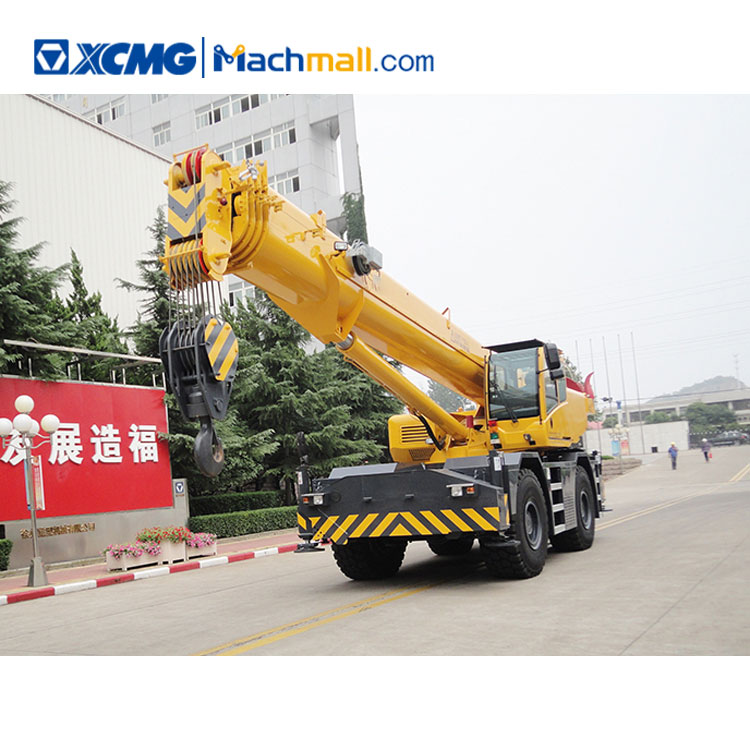

XCMG 40 ton Mobile Rough Terrain Crane High XCR40 Performance Truck Crane for sale



1. Safe and Reliable, No Worry to Handle

* The product is equipped with lifting protection control system in case of overload, over-retracting and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely;

* The product is equipped with top features in this field, professional matching upgrading and systematic evaluation test. And it has passed test like driving 11,000 km and 10,000 times hanging. Both ensure its reliability.



2. Economic and Environmental Protection, with Cost Saving

* The product is equipped with optical matching power transmission system and torque converter with lockout function, which decrease the oil consumption over 20% at high speed.

* The one-way stabilized current control of parallel hydraulic pressure system reduces the loss of flow; the gravity drop luffing system needs no extra power and save the oil consumption.



3. Comfortable to Handle, Convenient to Operate

* The product is equipped with full hydro-steering control system and automatic-manual gear box, which make it easy to handle. And

the compounded suspension of leaf spring and hydraulic oil tank, and the self-recognition phased control of rotary cushion

technology make the operation stability and comfortable;

* The product is equipped with humanized climb ladder, maintenance access and control layout. And it is equipped with professional man-machine engineering simulation analysis; exquisite man-machine interface and stand-alone fault diagnose function. It is comfortable to handle and convenient to operate.

Item







Parameter

Allowance



Overall length



mm

11952

±1%

Dimension

Overall width



mm

2980

-1%~0



Overall height



mm

3450

-1%~0



Wheel base



mm

3700

±1%



Track (front/rear)



mm

2440

±1%



Front/rear overhang



mm

1900/2151

±1%



Front/rear extension



mm

4201/0

±1%



Kerb mass



kg

30300

±3%

Weight

Axle load

1st Axle

kg

15100

±3%





2nd Axle

kg

15200

±3%



Max. travel speed













km/h

25



Travel

Min. turning radius





5.7 (4 wheels), 9.6 (2 wheels)









m



±3%



Min. ground clearance















mm

400

±1%



Approach angle



°

23

±1°



Departure angle



°

20

±1°



Braking distance (at 24 km/h)



m

9



Max. grade-ability



%

55



Engine model





QSB6.7-C190

/



Rated engine power



kW

142

/

Power

Engine rated rotation speed















r/min

2200

/



Engine emission standard





off-road EU Stage IIIA













/



Driving type





4×2, 4×4

/



Tire specifications





20.5R25

/



Number of tires





4

/





collectPng
Favorites
Inquiry
Application
constructionworks
BrandName
Certification
CE/ISO
ModelNumber
XCR40
Max.LiftingHeight
54.8m
Max.LiftingLoad
40Ton
PlaceofOrigin
Jiangsu,China
RatedLiftingMoment
989.8kn.m
RatedLoadingCapacity
40Ton
Span
modelname
RoughTettainCranes
