XCMG Official 32m Water Tower Fire Truck JP32A2 for sale

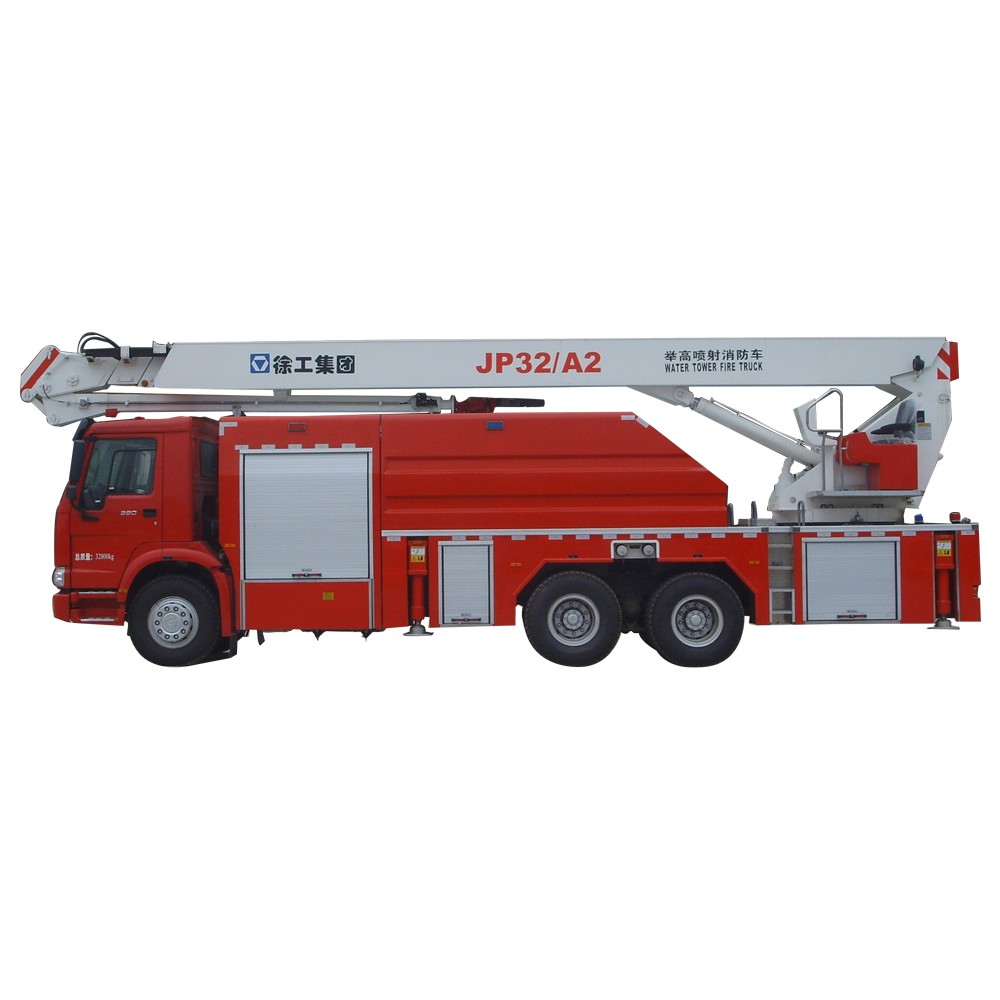

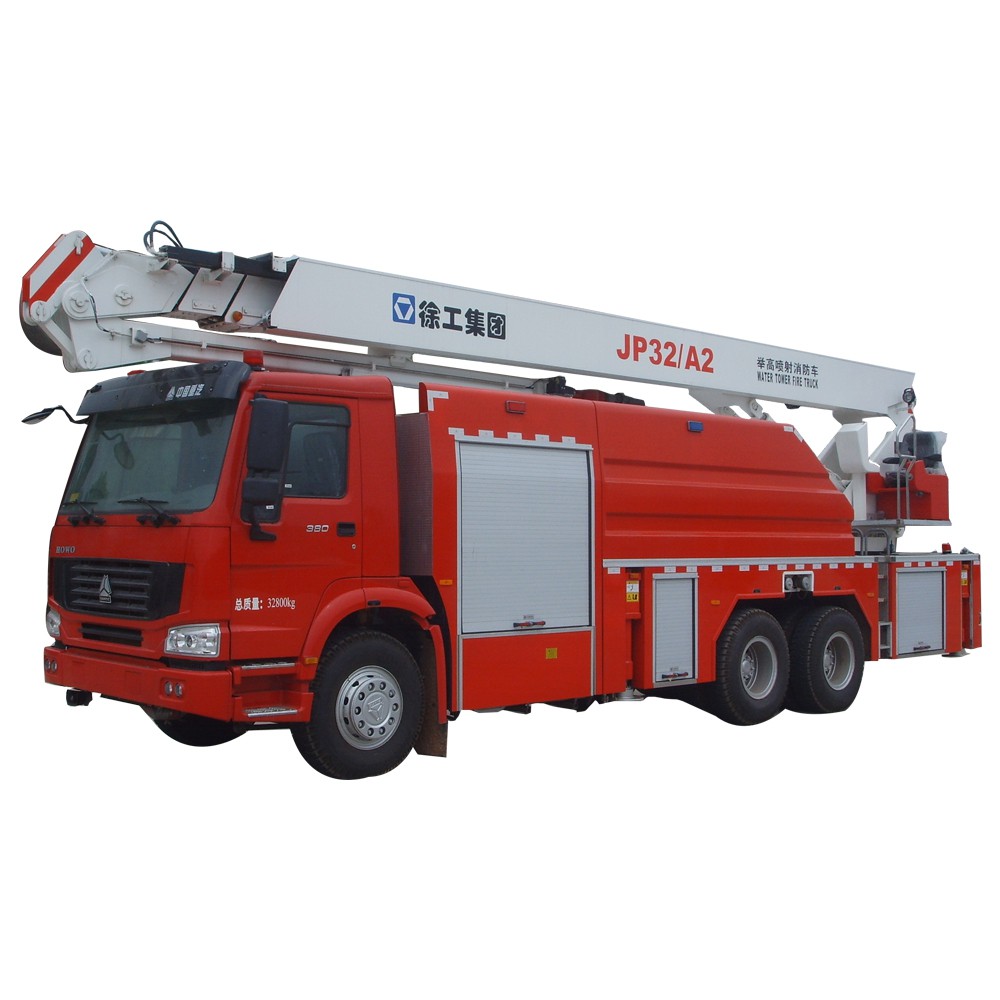

JP32A2 Water Tower Fire Truck
1.  JP32A2 chassis adopts class-II chassis of HOWO ZZ5347V4647D1 6×4 producted by Sinotruk and emission of Guosi with advanced performance and great bearing capacity.
2.  Complete function of fire-fighting system.
1)  Advanced system configuration PSP1500 pump of American Darley and the platform water monitor is the 3578+5177/3626 electronic-controlled fire monitor of American AKRON are adopted. The water pump is driven by the full power takeoff with reliable performance which is suitable for long-time operation.
2)  Complete configuration of fire-fighting system: The liquid carrying capacity of the vehicle-mounted stainless steel tank is 8.5t, which can achieve the rapid fire-fighting operation.
3)  The fire-fighting system of the vehicle adopts intelligent control and electric operation with simple operation. The main fire monitor may be conducted with wireless remote control within 100m.
3.  Based on the distributed control technology of PLC and CAN bus, the elevating angle and extension of whole vehicle adopt the new and reliable detection, which may realize the automatic reliable leveling of substructure, posture dynamic monitoring of upper and substructure, provision of abundant information of HMI with good leveling mobility and stable and impact-free superstructure movement.
4.  The hydraulic system uses variable pump and electro-hydraulic proportional load sensing and controlling system with the closed core. The system has stable flow, whose loading changements have no influence on the speed of action. The system has no pressure loss, but energy saving and environmental protection.
5.  Professional appearance molding design with pretty appearance is adopted in the complete machine, and the operation and usage is humanization with good effect.
6.  It is equipped with manual and automatic leveling functions, with high accuracy and fast speed.
7.  Large scope of work The maximum height of operation is upto 32 meters, and the maximum operation range is upto 19 meters.
8.  Allowable unilateral operation: Meet the demand of operation in narrow space.
9.  The maintenance is simple and the vehicle can be lubricated by itself.
10. Complete and reliable safety protection device.

Description		Unit	Parameter value
Overall length		mm	11510
Overall width		mm	2500
Overall Height		mm	3900
Full mass		kg	32800
Max. Speed		km/h	≥90
Min. Turning diameter		m	≤24
Approach angle			≥16°
Departure angle			≥9°
Maximum gradeability		%	≥25
Outrigger span	Longitudinal span	mm	6000
	Horizontal span		5400
Maximum working height		m	32
Maximum working radius		m	19
Elevating angle of boom			Telescopic boom -3°—85° The elevating angle of folding boom and telescopic boom is 0°-180°
Rotation scope			360° full-rotation
Spread time of outrigger		s	≤30
Time for lifting the boom to rated height and rotating 90°		s	≤110
Maximum slewing speed		r/min	0.5～1.5
Fire fighting pump	Rated flow	L/s	70
	Rated pressure	MPa	1.7
Fire fighting gun	Model		3578+3626	3578+3626
	Rated flow	L/s	64	64
	Rated pressure	MPa	1.0	1.0
	Range	m	70	65
