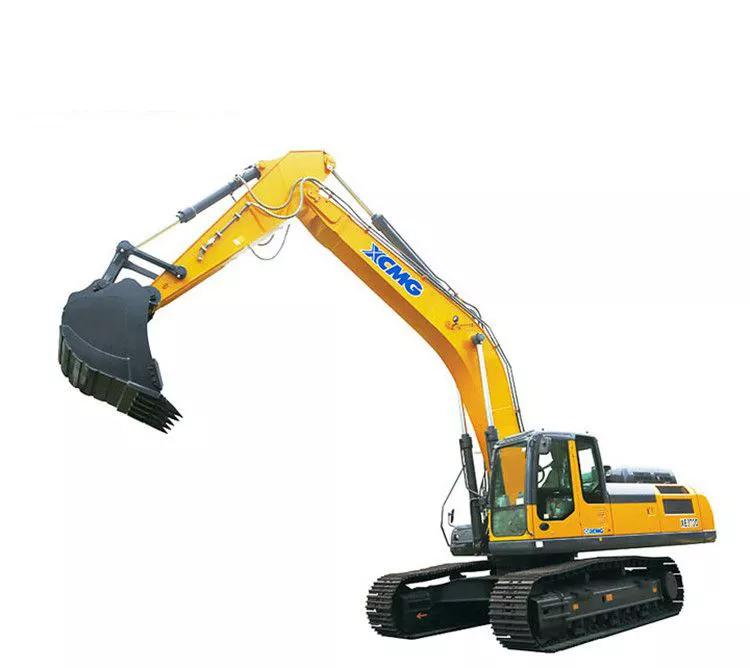

XCMG 38t XE380DK Cheap Used Excavator Machine For Sale
XCMG cheap used excavator machine 38t XE380DK has a maximum digging depth of 7147mm, a maximum digging height of 10508mm, a maximum digging radius of 10968mm, and a rated power of 214/2100kw/rpm. XCMG XE380DK excavator machine adopts original imported hydraulic system, large displacement main pump, large system flow and fast speed; XCMG XE380DK is equipped with imported high-power Cummins engine with sufficient power reserve, large torque and strong power. XCMG XE380DK excavator machine are widely used in small and medium-sized mines, water conservancy, highway and bridge construction and other projects.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
| Sales model | Unit | XE380DK | |
| Operating weight | Kg | 38200 | |
| Bucket capacity | m³ | 1.9-2.3 | |
Engine | Model | / | QSL9 |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo-charging | / | √ | |
| No. of cylinders | / | 6 | |
| Output power | kw/rpm | 214/2100 | |
| Maximum torque/speed | N.m/rpm | 1344/1300 | |
| Displacement | L | 8.9 | |
Main performance | Travel speed | km/h | 5.6/3.3 |
| Swing speed | r/min | 9.6 | |
| Gradeability | ° | 35 | |
| Ground pressure | kPa | 69 | |
| Bucket digging force | kN | 292 | |
| Arm digging force | kN | 209 | |
| Maximum traction | kN | 285 | |
Hydraulic system | Rated flow of main pump | L/min | 2×330 |
| Main safety valve pressure | MPa | 34.3/37.3 | |
| Travel system pressure | MPa | 34.3 | |
| Rotary system pressure | MPa | 26.5 | |
| Pilot system pressure | MPa | 3.9 | |
Oil Capacity | Fuel tank capacity | L | 660 |
| Hydraulic tank capacity | L | 350 | |
| Engine oil capacity | L | 30 | |
Appearance size | Overall length | mm | 11436 |
| Overall width | mm | 3225 | |
| Overall height | mm | 3695 | |
| Width of platform | mm | 3220 | |
| Track length | mm | 5035 | |
| Overall width of chassis | mm | 3190 | |
| Track width | mm | 600 | |
| Length to center of rollers | mm | 4040 | |
| Track gauge | mm | 2590 | |
| Counterweight clearance | mm | 1197 | |
| Min. ground clearance | mm | 500 | |
| Min. tail swing radius | mm | 3700 | |
| Track height | mm | 1105 | |
Working scope | Max. digging height | mm | 10508 |
| Max. dumping height | mm | 7300 | |
| Max. digging depth | mm | 7147 | |
| Maximum depth cut for 2240mm(8 ft) level bottom | mm | 6980 | |
| Max. vertical wall digging depth | mm | 6542 | |
| Max. digging radius | mm | 10793 | |
| Min. swing radius | mm | 4560 | |
Standard configuration | Length of boom | mm | 6400 |
| Length of arm | mm | 2900 | |
| Bucket capacity | m³ | 1.9 | |
Optional configuration | Length of boom | m³ | / |
| Length of arm | m³ | 2670 | |
| Bucket capacity | m³ | 2.1 Strengthened bucket 2.3 Earth Working bucket | |
