XCMG 13t XE135D Used Hydraulic Crawler Excavators Machine For Sale

BrandName
XCMG
Bucketcapacity
0.32~0.61m³
Certification
CE/IOS9001
Basic Info.
View All >
BrandName
XCMG
Bucketcapacity
0.32~0.61m³
Certification
CE/IOS9001
ModelNumber
XE135D
MachineWeight
MaximumDiggingDepth
5546mm
XCMG Reconditioned Machine
XCMG Reconditioned Machine
Certified
Certified for 2 years
5.0/5
Rating
Within 24 hours
Response Time
2022-07-15
Year of establishment
Company Adress:
C1c5,software Park,Xuzhou,Jiangsu,China
Follow Visit Store

Description

Recommendation

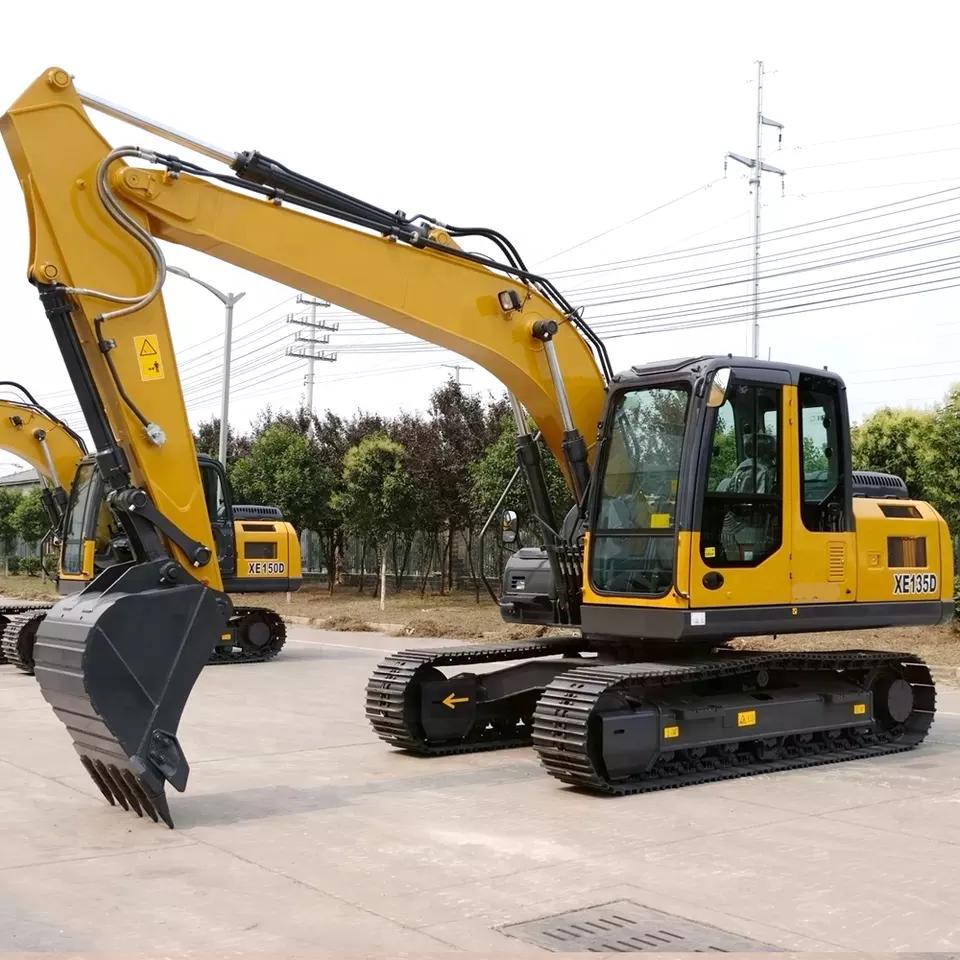

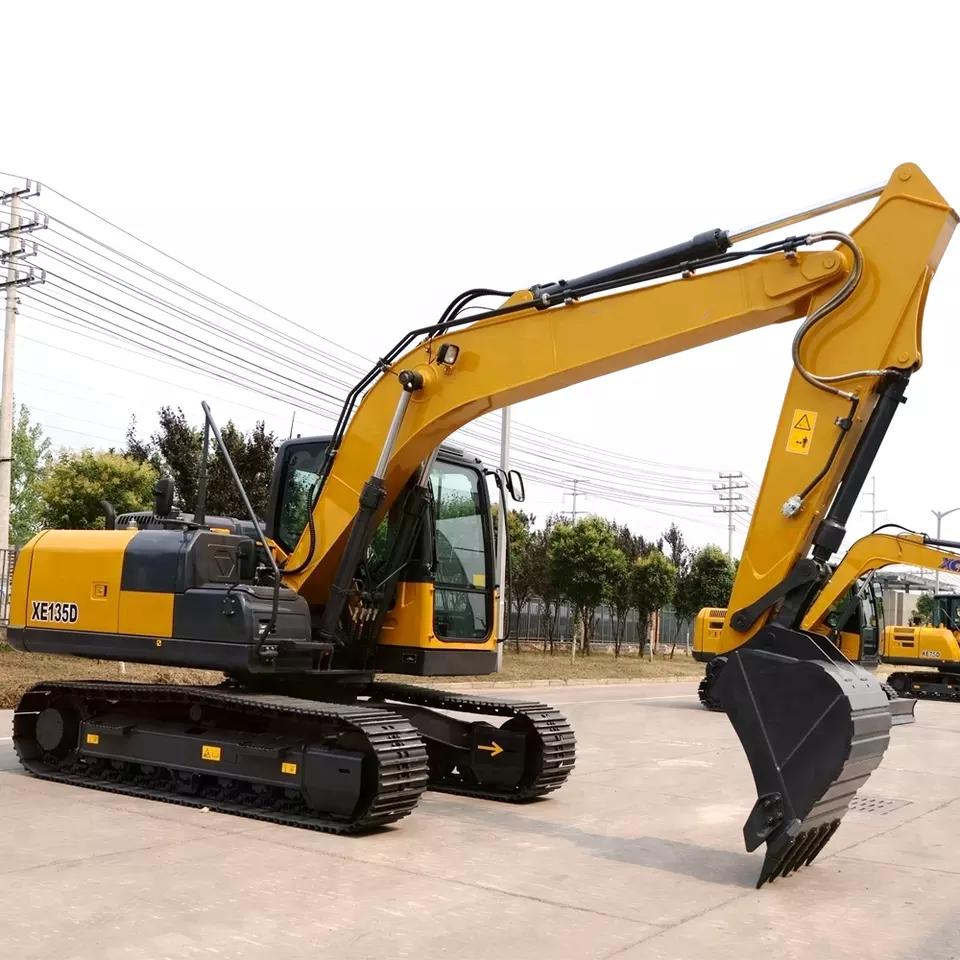

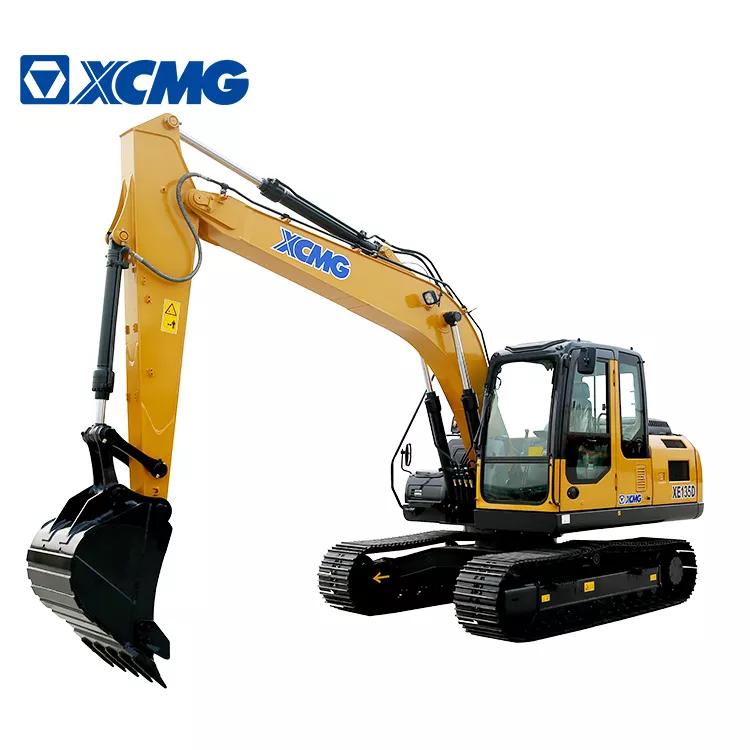

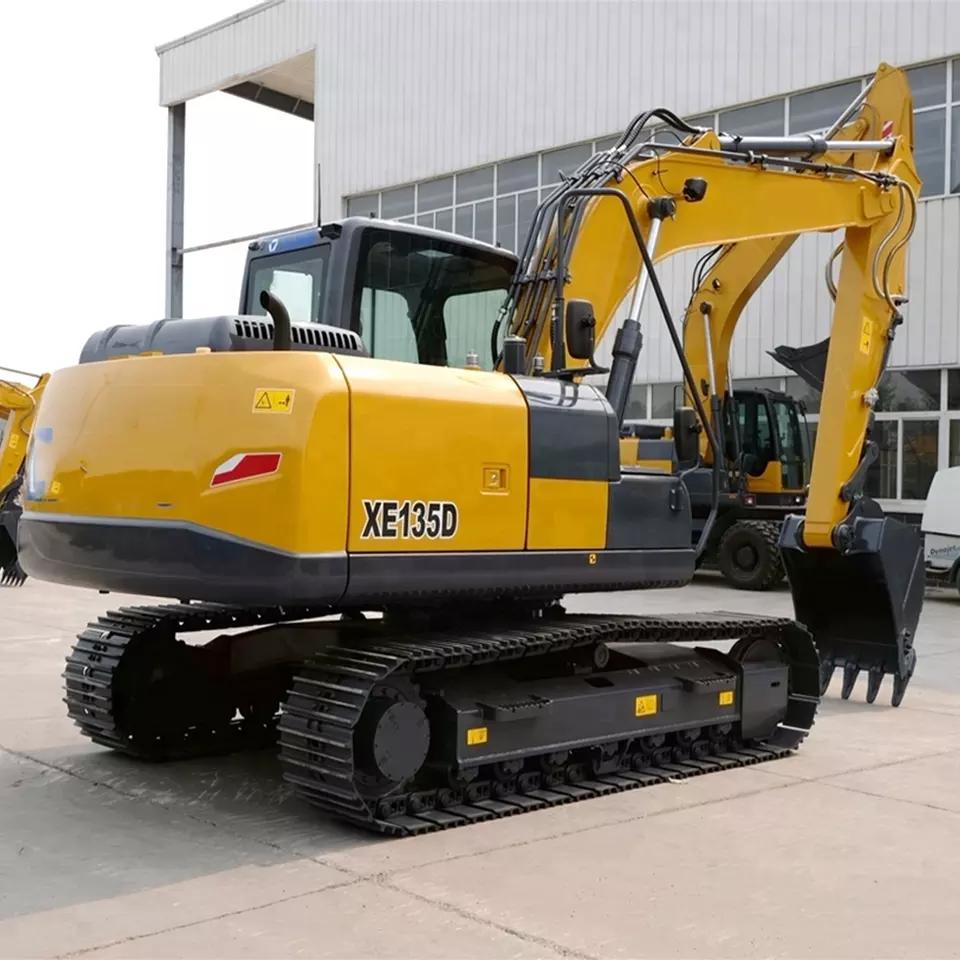

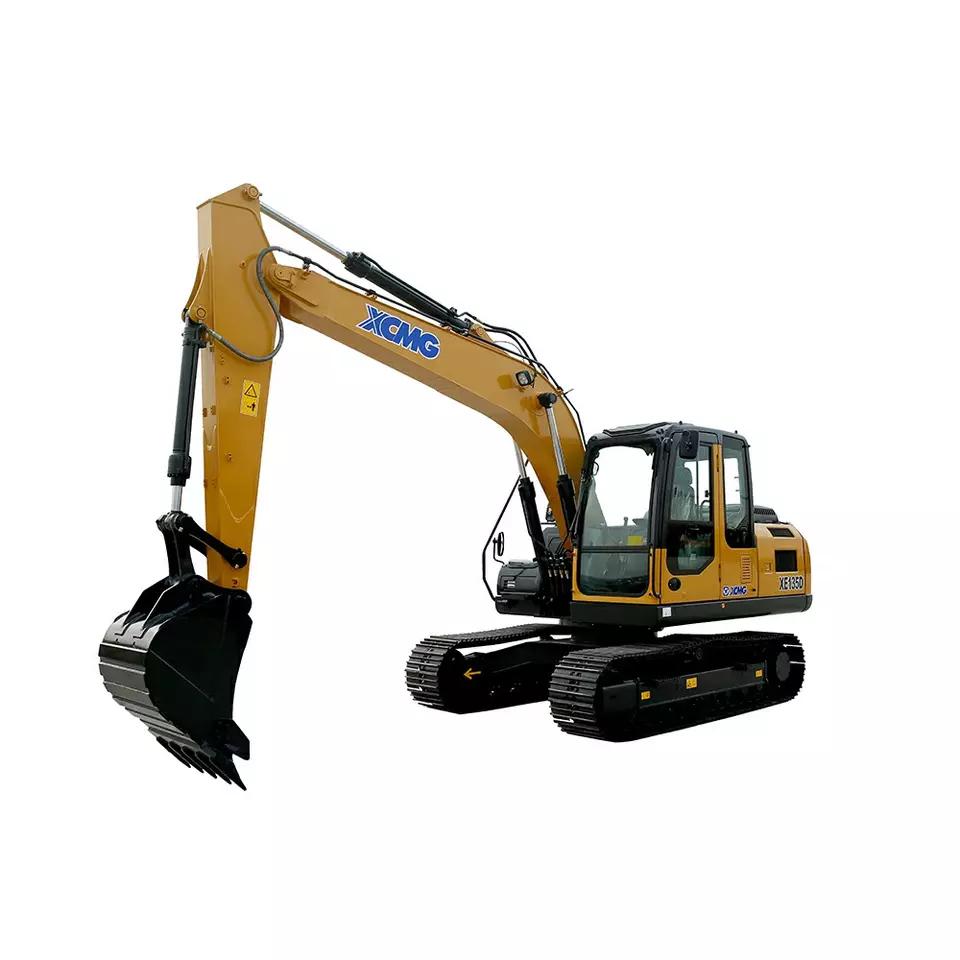

XCMG 13t XE135D Used Hydraulic Crawler Excavators Machine For Sale

XCMG XE135D 13 ton hydraulic crawler excavator adopts a new engine jointly developed by XCMG and Cummins.XCMG XE135D 13 ton hydraulic crawler excavator has strong power (the highest power among the same tonnage), high torque at low speed and high fuel economy.XCMG XE135D 13 ton hydraulic crawler excavator can reduce fuel consumption by 7% compared with the previous generation. New generation internationally famous hydraulic elements are of high rated working pressure, high efficiency, precise control, small impact and long service life.



Advantages and highlights:

1.Offer Test Report of Professional Institute.

2.Details Of Maintenance And Repair Items Included.

3.Price Concessions.

4.Official Factory Sourcing.

5.Reconditioning Directly From XCMG.

6.Vehicle Condition of Perfection.

7.XCMG Official Endorsement.

8.SGS Provides The Third-Party Inspection Certificate.





Model
Unit
XE135D
Operating weight
Kg
13200
Bucket capacity
m³
0.32-0.61
Engine
Model engine
/
QSF3.8
Injection
/
√
Four strokes
/
√
Water cooling
/
√
Turbo-charging
/
√
No. of cylinders
/
4
Rated power/speed
kw/rpm
86/2200
Maximum torque/speed
N.m/rpm
470/1300
Displacement
L
3.8
Main performance
Travel speed
km/h
5.2/2.9
Swing speed
r/min
11
Gradeability
°
35
Ground pressure
kPa
40.4
Bucket digging force
kN
99.1
Arm digging force
kN
68
Maximum tractive force
kN
134
Hydraulic system
Rated flow of main pump
L/min
125.4*2
Travel system pressure
MPa
34.4
Swing system pressure
MPa
25
Pilot system pressure
MPa
3.9
Oil Capacity
Fuel tank capacity
L
260
Hydraulic tank capacity
L
105
Engine oil capacity
L
11
Appearance size
Overall length
mm
7795
Overall width
mm
2525
Overall height
mm
2880
Width of platform
mm
2490
Total width of chassis
mm
2490
Track shoe width
mm
500
Wheel base of crawler
mm
2918
Track gauge
mm
1990
Counterweight clearance
mm
931
Min. ground clearance
mm
466
Working range
Max. digging height
mm
8638
Max. dumping height
mm
6174
Max. digging depth
mm
5546
Max. vertical wall digging depth
mm
4698
Max. digging radius
mm
8304
Min. swing radius
mm
2445
Standard
Length of boom
mm
4600
Length of arm
mm
2520
Bucket capacity
m³
0.52







servicePng
Chat Now
collectPng
Favorites
Inquiry
BrandName
XCMG
Bucketcapacity
0.32~0.61m³
Certification
CE/IOS9001
ModelNumber
XE135D
MachineWeight
MaximumDiggingDepth
5546mm
MaximumDiggingHeight
8638mm
MaxDiggingRadius
8304mm
OperatingWeight
13200kg
PlaceofOrigin
Xuzhou,China
RatedSpeed
5.2kM/h
modelname
Excavator
