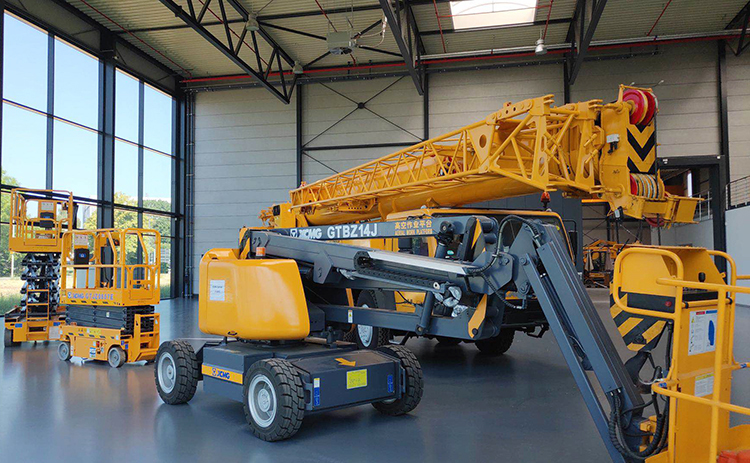

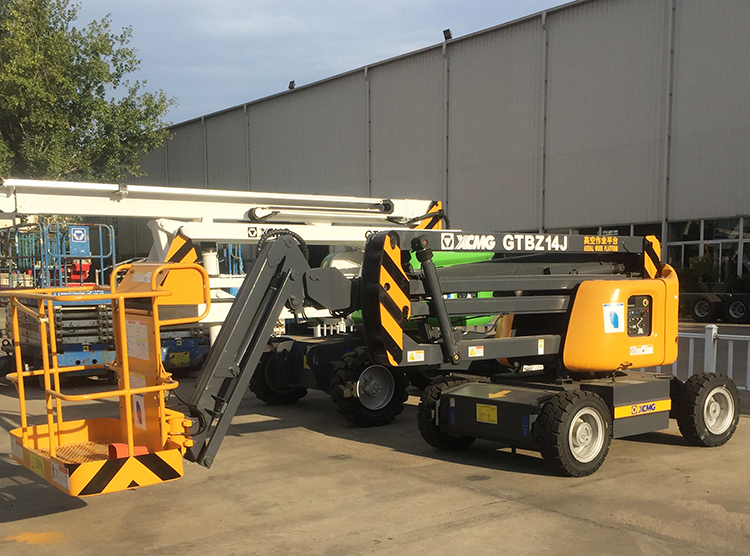

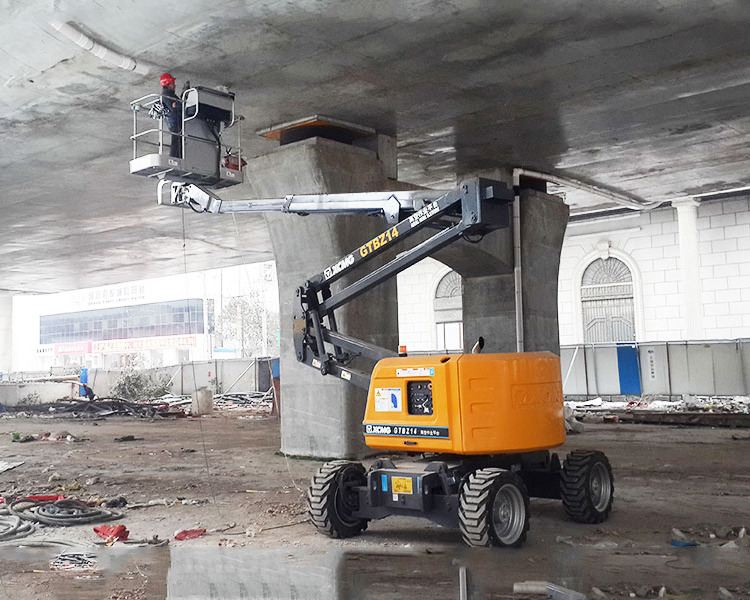

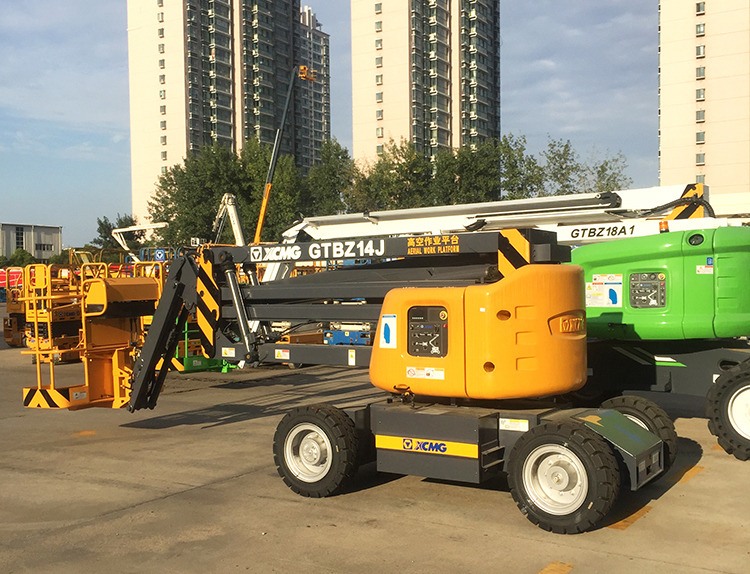

XCMG Second Hand 15m GTBZ14J Articulated Boom Lift For Sale

XCMG second hand 15m GTBZ14J is a articulated boom liftthe weight of the whole machine is 6900kg;

The max lifting height is 15.9m, the rated loading capacity is 230kg, and the rated power is 38KW/3000rpm.

XCMG GTBZ14J 15m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.



Advantages and highlights:

1.Offer Test Report of Professional Institute.

2.Details Of Maintenance And Repair Items Included.

3.Price Concessions.

4.Official Factory Sourcing.

5.Reconditioning Directly From XCMG.

6.Vehicle Condition of Perfection.

7.XCMG Official Endorsement.

8.SGS Provides The Third-Party Inspection Certificate.



Item
Parameter
Unit
Overall Length
6690
mm
Overall Width
2260
mm
Overall Height
2130
mm
Wheel Base
2100
mm
Maximum Working Height
15.75
m
Maximum Platform Height
14.05
m
Maximum Working Range
8.22
m
Maximum Load Capacity
230
kg
1st Boom luffing Range
0~+60
°
2nd Boom luffing Range
-8~+75
°
Crank Arm Luffing Range
-60~+80
°
Rotation Angle of Rotating Platform
355
°
Platform Size
1830*760*1150
mm
Platform turning angle
180
°
Total Weight
6900
kg
Maximum Travel Speed
6.1
km/h
Minimum Turning Radius
4.5
m
Minimum Ground Clearance
250
mm
Maximum Grade Ability
45
%
Tire Specification
315/55D20

Engine Model
Perkins404D-22

Rated Power of Engine
38/(3000)
kW/(r/min)
