XCMG 45t container reach stacker for sale
Description
Recommendation

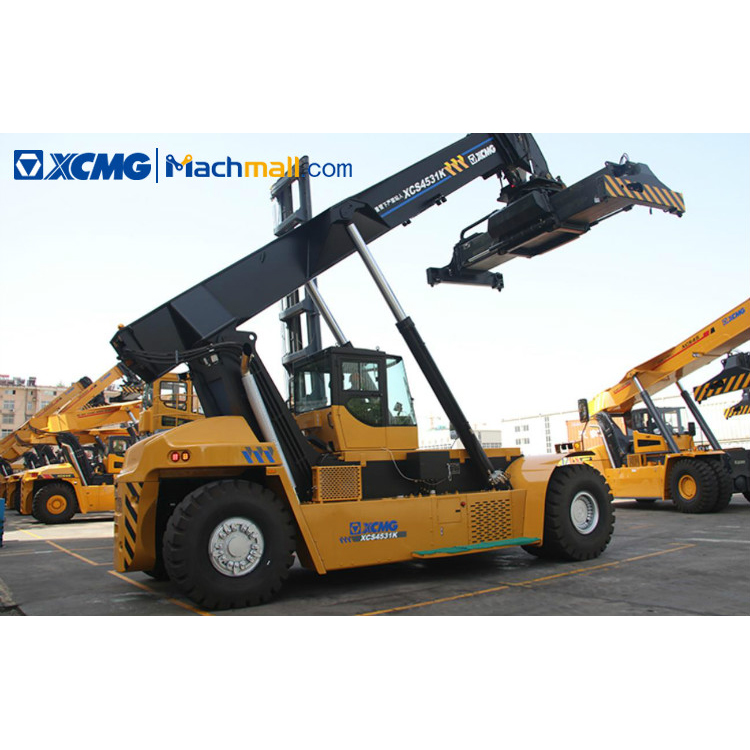

XCMG 45t container reach stacker .
XCMG Reach Stackers:
XCMG reach stackers include K series (diesel engine) and E series (pure electric) reach stackers
XCMG K Series Reach Stackers:
XCMG's K series reach stacker features good safety, high degree of intelligence, comfortable operation, energy saving and environmental protection, and it meets the requirements of the high-end market.
Applicable Working Conditions of XCMG K Series Reach Stacker XCS4531K:
IOS 20ft~40ft standard container
Highlights of XCMG XCS4531K Reach Stacker:
1. Powered by Volvo engine and Dana gearbox
2. Parker hydraulic system, IFM controller hydraulic and electric control scheme to ensure quick operation
3. The tilt spreader makes up for the defect that the ordinary reach stacker cannot dump and improves the efficiency of the container.
XCMG XCS4531K Reach Stacker Optional Configurations:
smart brakes, precise weighing, panoramic images, etc.
|
Parameter |
Unit |
XCS4531K |
|
Max.lifting height |
mm |
15100 |
|
Inclination angle |
。 |
0-60 |
|
Max lifting speed（Unloaded/loaded） |
mm/s |
420/250 |
|
Max lowering speed（Unloaded/loaded） |
mm/s |
360/360 |
|
Max travelling speed（Unloaded/loaded） |
km/h |
25/21 |
|
Gradeability（Unloaded/loaded） |
% |
39/32 |
|
Overall weight |
t |
71.2 |
|
Rated capacity |
t |
45 |
|
No. of stack |
- |
5（9’6”/8’6”） |
|
Overall length |
mm |
11340 |
|
Wheel base |
mm |
6000 |
|
Overall height |
mm |
4670 |
|
Min ground clearance |
mm |
350 |
|
Overall width |
mm |
6052-12185 |
|
Front track |
mm |
3033 |
|
Rear track |
mm |
2790 |
|
Min Turing radius |
mm |
8000 |
|
20’ container aile width |
mm |
11300 |
|
40’ container aile width |
mm |
13600 |
