XCMG second-hand all terrain truck crane QAY260 for sale

Inquiry
BrandName
XCMG
Certification
ISOCE
Dimension(L*W*H)
15850*3080*4000mm
Basic Info.
View All >
BrandName
XCMG
Certification
ISOCE
Dimension(L*W*H)
15850*3080*4000mm
HoistingSpeed
LoderWeight
260t
MaxLiftingHeight
103.3m
XCMG Reconditioned Machine
XCMG Reconditioned Machine
Certified
Certified for 1 years
5.0/5
Rating
Within 24 hours
Response Time
2024-09-03
Year of establishment
Company Adress:
C1c5,software Park,Xuzhou,Jiangsu,China

Description

Recommendation

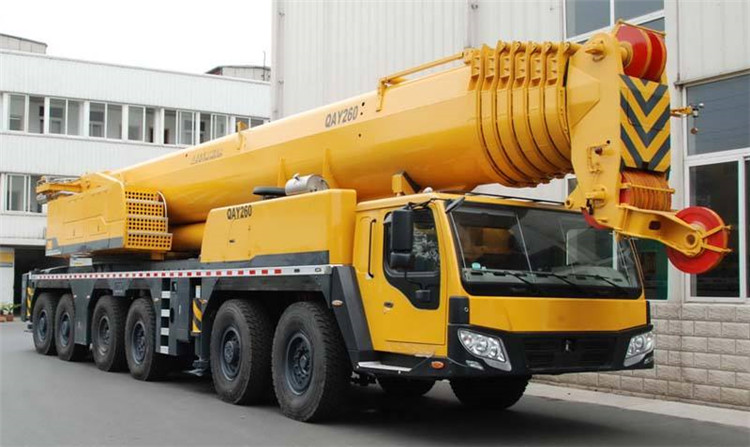

XCMG second-hand all terrain truck crane QAY260 for sale

• As the final product of the new generation all terrain crane, QAY260 perfectly inherits the advantages of the previous products.

• The product adopts 6-axle all terrain chassis, 12x12 full-axle steering mode. Adopt the imported engine with strong power, the maximum speed can reach 72Km/h, and the maximum grade ability is 50%. The fully extended length of the 7-segment retractable boom is 70m,adopts high-intensity imported steel, featuring lighter dead-weight and stronger performance. The optimized various retractable boom combination play the performance to the most.

• The self-combination counterweight technique developed by ourselves can effectively improve the lifting performance by 30%. The electrohydraulic proportion control multi-axle steering mode can realize many kinds of steering modes. The new brake technique can reduce 2/3 maintenance cost, and improve the travel safety. The comfortable cabs and outrigger operation completely show the humanity design concept. Equip with  unique control system, auxiliary retractable boom system, virtual wall system, perfect failure diagnosis, real-time detection, technique, etc.



Advantages and highlights:

1.Offer Test Report of Professional Institute.

2.Details Of Maintenance And Repair Items Included.

3.Price Concessions.

4.Official Factory Sourcing.

5.Reconditioning Directly From XCMG.

6.Vehicle Condition of Perfection.

7.XCMG Official Endorsement.

8.SGS Provides The Third-Party Inspection Certificate.



Dimension

QAY260

Outline dimension

15850*3080*4000mm

Total weight in travel

72000kg

Front axle load

/

Rear axle load

/

Engine model

TAD720VE    OM502LA.E3A/3

Engine rated power

194/2100   420/1800 kW/(r/min)

Engine rated torque

2700/1300 N.m/(r/min)

Max. rated total lifting capacity

260t

Min. rated working radius

3mm

Max. travel speed

72 km/h

Max. lifting torque

7980kN.m

Base boom

/

Fully extended boom

70m

Fully extended boom+ jib

101.5m

Longitudinal outrigger span

8.7m

Lateral outrigger span

8.8m
