XCMG official manufacturer QY40KC 40ton Used mobile truck crane for sale

Application
ConstructionIndustry
BrandName
XCMG
Certification
CE/ISO9001/CCC
Basic Info.
View All >
Application
ConstructionIndustry
BrandName
XCMG
Certification
CE/ISO9001/CCC
ModelNumber
QY40KC
Max.LiftingHeight
60.3m
Max.LiftingLoad
XCMG Reconditioned Machine
XCMG Reconditioned Machine
Certified
Certified for 0 years
5.0/5
Rating
Within 24 hours
Response Time
2024-09-03
Year of establishment
Company Adress:
C1c5,software Park,Xuzhou,Jiangsu,China
Follow Visit Store

Description

Recommendation

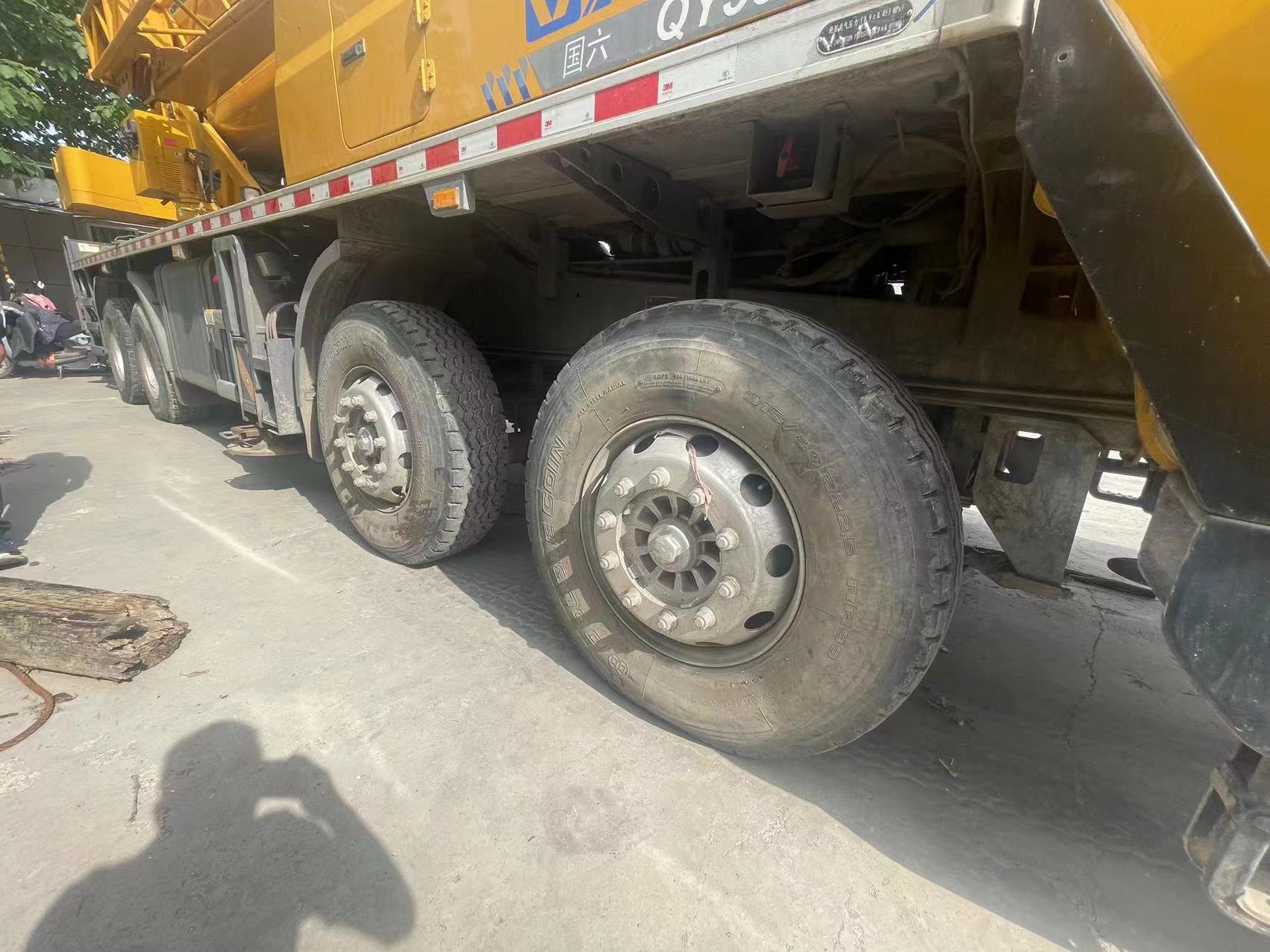

XCMG official manufacturer QY40KC 40ton Used mobile truck crane for sale

1. Four outriggers, H-type arrangement, single-stage outrigger beam. Hydraulic control is used to extend and retract the outrigger beams and jacks. There are manual control levers fitted at each side of the chassis, as well as a level gauge, an illuminator and a speed regulating button. Each outrigger jack is equipped with a double-way hydraulic valve.

2. SC9DF340Q5, in-line, 6-cylinder, water cooled, electric control diesel engine, with rated power of 251 kW/1900 rpm and max. torque of 1450Nm/1100-1400 rpm, compliant to China V emission standard.

3.Mechanical steering mechanism with a hydraulic booster for 1st and 2nd axles.

Advantages and highlights:

1.Offer Test Report of Professional Institute.

2.Details Of Maintenance And Repair Items Included.

3.Price Concessions.

4.Official Factory Sourcing.

5.Reconditioning Directly From XCMG.

6.Vehicle Condition of Perfection.

7.XCMG Official Endorsement.

8.SGS Provides The Third-Party Inspection Certificate.



Description
Unit
Parameter value
Overall length
mm
13745
Overall width
mm
2800
Overall Height
mm
3560
Wheel Base
mm
1470+4050+1350
Track
mm
2322/2059
Total vehicle mass in travel configuration
kg
39400
Axle load
1st axle
kg
6890
2nd axle
6890
3rd axle
12810
4th axle
12810
Max. travel speed
km/h
≥90
Min. turning diameter
m
≤24
Min. ground clearance
mm
293
Max. grade ability
%
≥45
Approach angle
°
19
Departure angle
°
15
Braking distance (at 30 km/h, full load )
m
≤10

servicePng
Chat Now
collectPng
Favorites
Inquiry
Application
ConstructionIndustry
BrandName
XCMG
Certification
CE/ISO9001/CCC
ModelNumber
QY40KC
Max.LiftingHeight
60.3m
Max.LiftingLoad
PlaceofOrigin
Jiangsu,China
RatedLiftingMoment
1574KN.m
RatedLoadingCapacity
40ton
Span
7.1m
modelname
Truckcranes
