XCMG official 0.16 m3 china excavator 2020 year XE55DA price list

BrandName
XCMG
Bucketcapacity
0.16m3
Certification
Basic Info.
View All >
BrandName
XCMG
Bucketcapacity
0.16m3
Certification
ModelNumber
XE55DA
MachineWeight
5750kg
MaximumDiggingDepth
3830mm
XCMG Reconditioned Machine
XCMG Reconditioned Machine
Certified
Certified for 2 years
5.0/5
Rating
Within 24 hours
Response Time
2022-07-15
Year of establishment
Company Adress:
C1c5,software Park,Xuzhou,Jiangsu,China
Follow Visit Store

Description

Recommendation



XCMG official 0.16 m3 china excavator 2020 year XE55DA price list

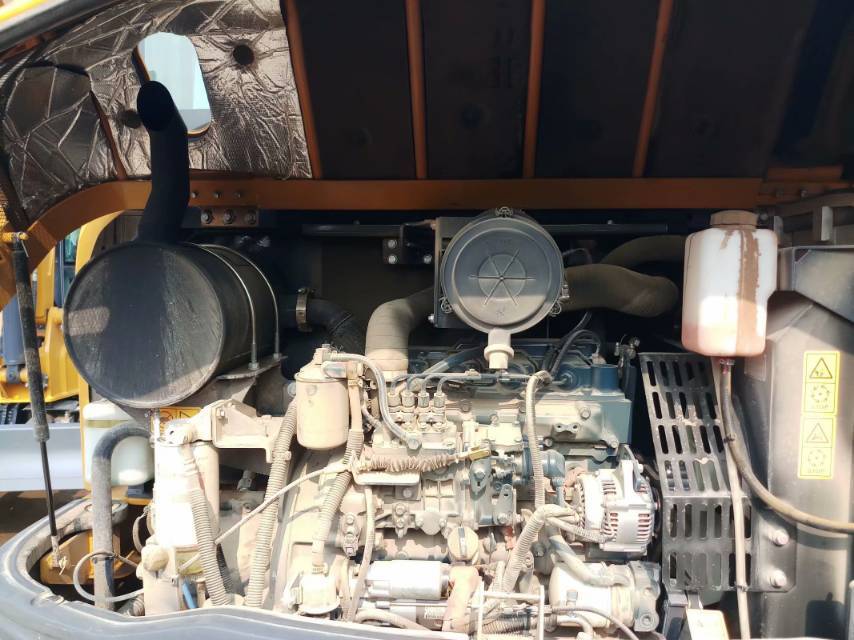

Adopting new environmental friendly Kubota engine, low speed torque, low fuel consumption, high operating efficiency, reliable and durable. It adopts a cross-stage large displacement constant power variable pump with high volumetric efficiency



Advantages and highlights:

1.Offer Test Report of Professional Institute.

2.Details Of Maintenance And Repair Items Included.

3.Price Concessions.

4.Official Factory Sourcing.

5.Reconditioning Directly From XCMG.

6.Vehicle Condition of Perfection.

7.XCMG Official Endorsement.

8.SGS Provides The Third-Party Inspection Certificate.



Model

Unit
XE55DA PLUS
Operating weight

Kg
5750
Bucket capacity

m³
0.21-0.23
Engine
Model
/
V2607
No. of cylinders
/
4
Rated power
kw/rpm
35/2000
Displacement
L
2.615
Main performance
Travel speed
km/h
4.2/2.2
Swing speed
r/min
10
Gradeability
°
35
Ground pressure
kPa
31
Bucket digging force
kN
48.3
Arm digging force
kN
32.5
Maximum tractive force
kN
50.5
Hydraulic system
Rated flow of main pump
L/min
150
Main safety valve pressure
MPa
24.5
Travel system pressure
MPa
24.5
Swing system pressure
MPa
24
Pilot system pressure
MPa
3.5
Oil Capacity
Fuel tank capacity
L
110
Hydraulic tank capacity
L
77
Engine oil capacity
L
10
Appearance size
A Overall length
mm
5860
B Overall width
mm
1980
C Overall height
mm
2585
D Width of platform
mm
1780
F Overall width of chassis
mm
1980
G Track width
mm
400
H Wheel base of crawler
mm
2060
I Track gauge
mm
1560
J Counterweight clearance
mm
700
K Min. ground clearance
mm
385
Working scope
A Max. digging height
mm
5630
B Max. dumping height
mm
3945
C Max. digging depth
mm
3830
F Max. digging radius
mm
6130
G Min. swing radius
mm
2640
