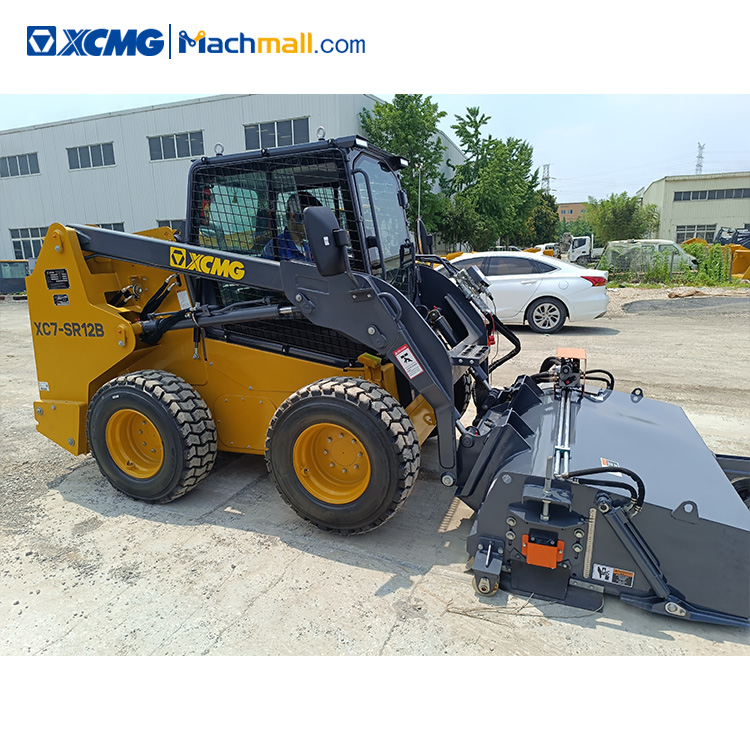

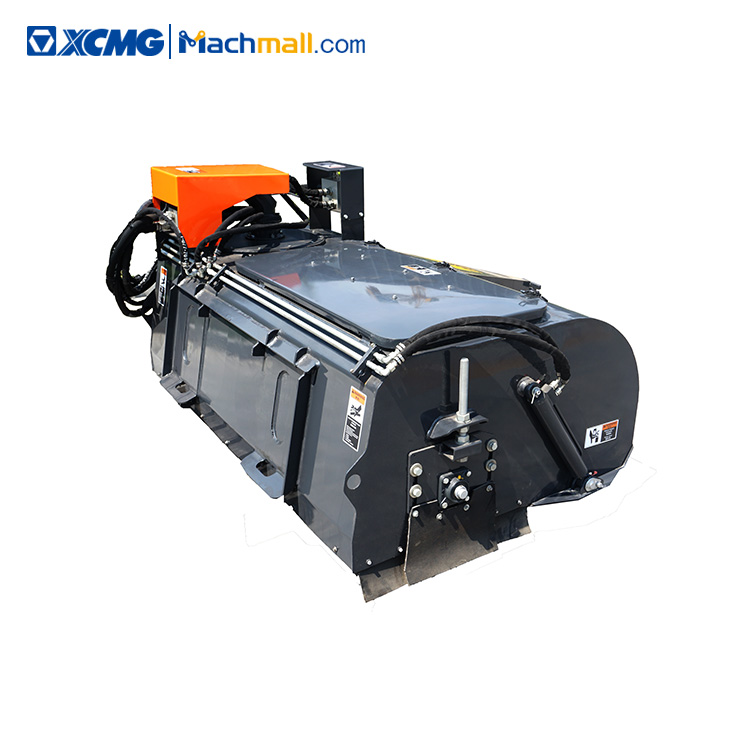

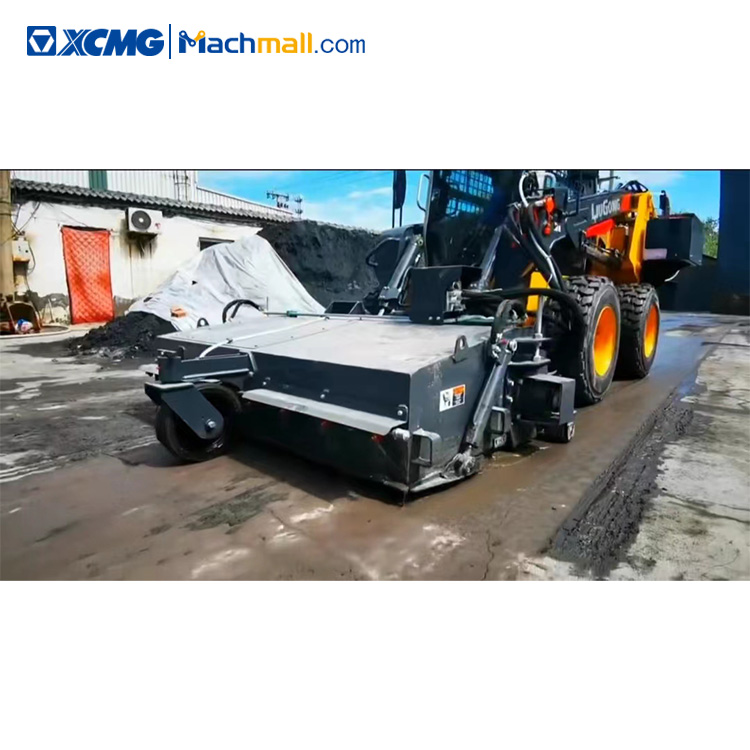

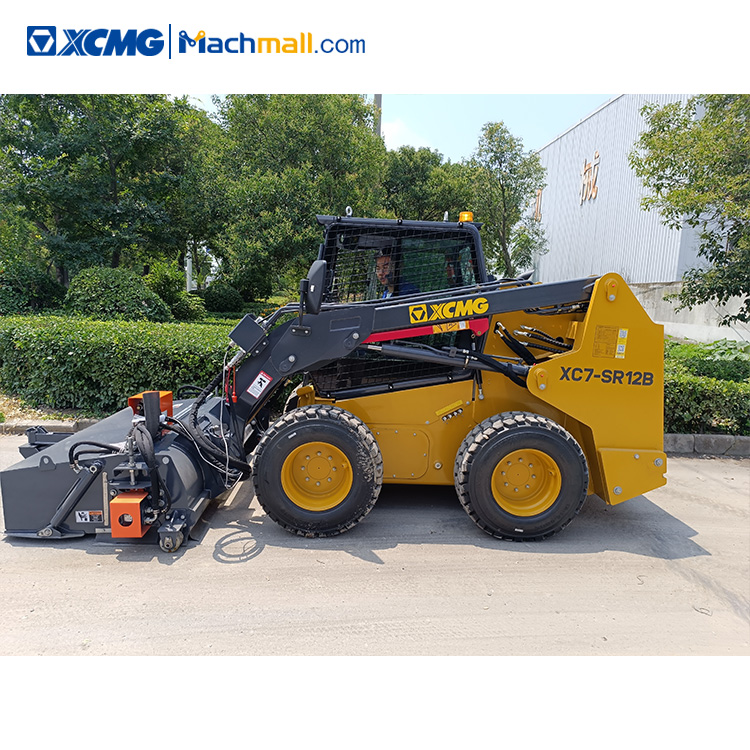

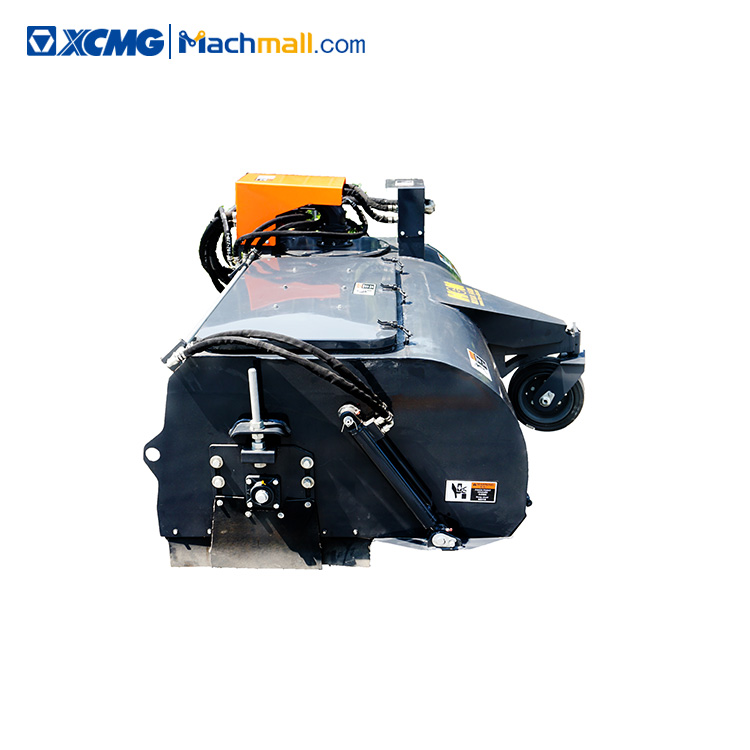

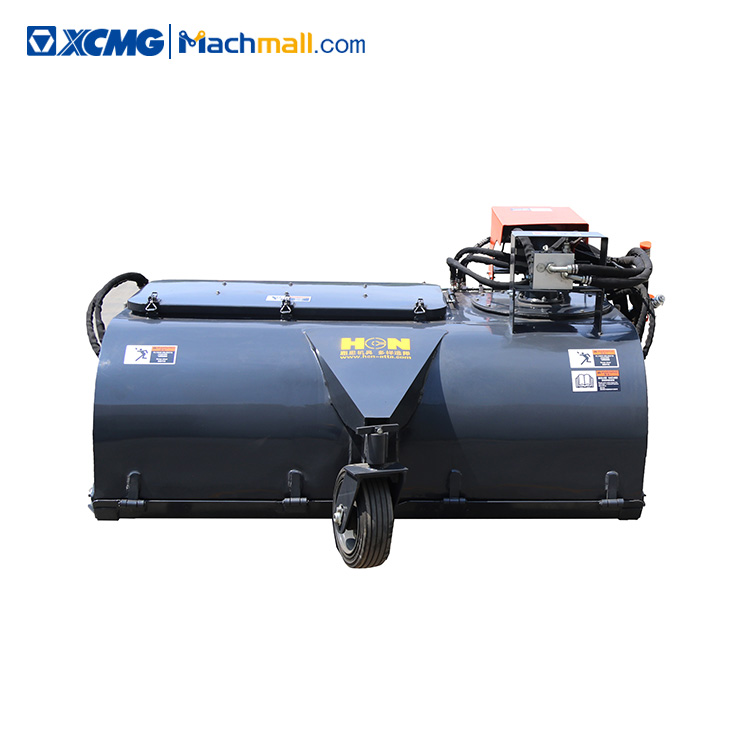

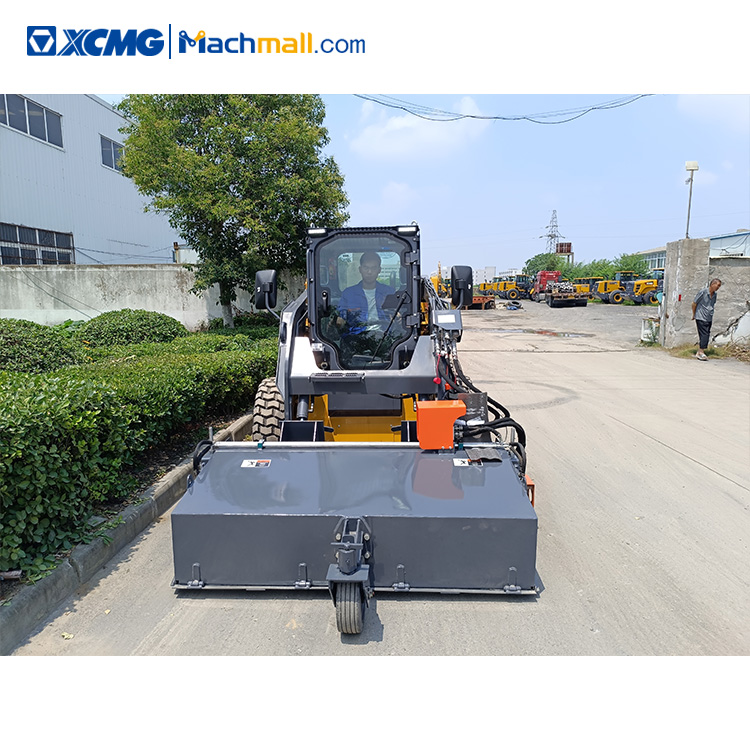

XCMG hot sale 0202 Municipal Roads Floor Sweeper pick up sweeper
The skid steer pick-up broom sweeper is a practical attachment for sweeping, collecting, and dumping dirt and other job site debris. Equipped with 26’’ diameter poly/steel wire mix bristles and kept with sufficient room for the bristles to collect dirt and debris toward the attached bucket, this sweeper is designed to work efficiently and is long-lasting. Other features include the bolt-on replaceable cut edge, protective rubber skirting, durable hydraulic motor, height-adjustable metal shroud, and more!
A case drain line, the 3/8’’ hydraulic hose, is added to adapt for the newer version of skid steers to release the hydraulic pressure built up in the motor, which will alternatively extend the life span of the motor. If your skid steer is older or does not have a port for the third hose, it is safe to use this sweeper but keep the case drain line plugged. This sweeper cannot work with high-flow skid steers
1、Durable direct-drive hydraulic motor
2、Bi-directional collection broom sweeps in forward and reverse
3、Poly/steel wire mix bristles
4、Rubber skirting to contain debris
5、Replaceable bolt-on cutting edge
6、Motor and shaft guards
7、Height adjustment screw with six positions
Model | Mini 020245 | 020260 | 020272 | 020284 |
Over length (mm) | 1220 | 1450 | 1450 | 1450 |
Over width (mm) | 865 | 1817 | 2117 | 2466 |
Over height (mm) | 405 | 926 | 926 | 926 |
Height product (without support spring) (mm) | 405 | 680 | 680 | 680 |
Over weight(kg) | 180 | 456 | 480 | 540 |
Bucket capacity (m3) | 0.1 | 0.39 | 0.46 | 0.56 |
Working width (mm) | 990 | 1530 | 1830 | 2130 |
Brush Dia. (mm) | φ400 | φ660 | φ660 | φ660 |
Allow maximum pressure (Mpa) | 20 | 21 | 21 | 21 |
Work Flow(L/min) | 30-40 | 60-80 | 60-80 | 60-80 |
