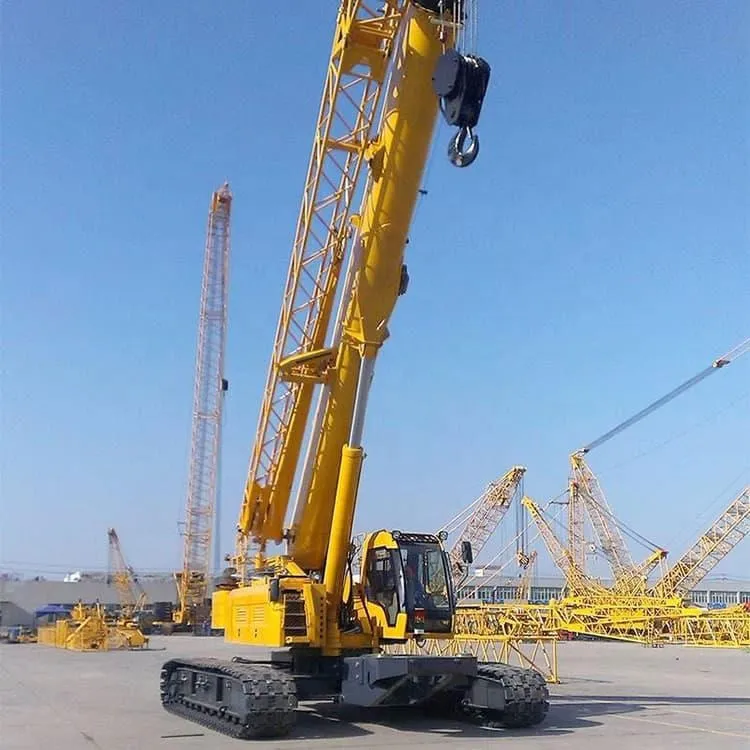

XGC120T Telescopic Crawler Crane
The max. rated lifting capacity of XGC120T telescopic crawler crane is 120t, with six telescopic boom sections, two side-sited folding jib sections, 56m fully-extended boom (12.2～56m) and 10.6/18.1m jib. Its boom length can fulfill various working radius demands. Telescoping crawler track is with self-assembly and disassembly function, not only meets the high stability requirement of lifting operation, but also the outline dimension requirement for overall crane transportation.
It is mainly used for operations in special conditions with highly restricted spaces and no-pavement, such as pile in building construction site, bridge, tunnel, building interior demolition, and etc. It will show its unique advantages especially in desert, swamp and other rough working conditions.
|
Item |
Unit |
Parameter value |
||
|
Dimension parameter |
Overall crane length |
mm |
14776 |
|
|
Overall crane width(extend/retract) |
mm |
6300/3996 |
||
|
Overall crane height |
mm |
3758 |
||
|
Center distance between drive roller and driven roller |
mm |
6410 |
||
|
Crawler shoe width |
mm |
900 |
||
|
Weight parameter |
Total mass in travel state |
kg |
117106 |
|
|
Travel parameter |
Travel speed with no load |
km/h |
2.3 |
|
|
Travel speed with full load |
km/h |
1.1 |
||
|
Min. ground clearance |
mm |
305 |
||
|
Max. grade ability |
% |
50 |
||
|
Ground pressure |
MPa |
0.097 |
||
|
Power parameter |
Noise near ear |
dB（A） |
80 |
|
|
Engine model |
- |
QSL |
||
|
Engine rated power |
kW |
242 |
||
|
Engine rated speed |
r/min |
1800 |
||
|
Engine emission standard |
- |
|
||
|
Volume parameter |
Hydraulic oil tank volume |
L |
1050 |
|
|
Fuel tank volume |
L |
640 |
||
|
Main perdormance parameter |
Max. rated lifting capacity |
t |
120 |
|
|
Min. rated radius |
m |
2.5 |
||
|
Max. load moment |
Basic boom |
kN·m |
4165 |
|
|
Lifting height |
Basic boom |
m |
13 |
|
|
Longest boom |
m |
55.6 |
||
|
Longest boom+jib |
m |
71.2 |
||
|
Boom length |
Basic boom |
m |
12.2 |
|
|
Longest boom |
m |
56 |
||
|
Longest boom+jib |
m |
74.1 |
||
|
Jib offset angle |
° |
0°,15°,30° |
||
|
|
Boom raising time |
s |
80 |
|
|
Boom fully-extending time |
s |
460 |
||
|
Max. slewing speed |
r/min |
1.9 |
||
|
Hoisting speed (no load, the 4th layer) |
Main hoist system |
m/min |
140 |
|
