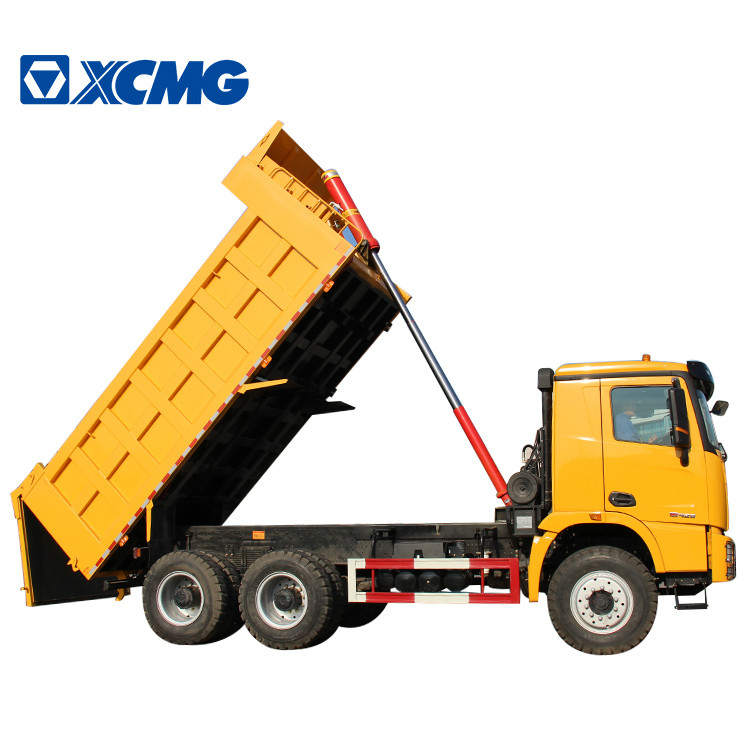

XCMG 42 ton New Chinese Dumper Trucks 371 HP Hydraulic Truck Dumpers 6*4 XGA3250D2WC For Sale.



Qilong T-series dump truck is designed for sand, stone, ore, ore powder, iron powder, construction slag and other different loads. Based on the construction site and urban road driving, it has a series of products of heavy load type, composite type and urban construction slag type. This kind of product is characterized by strong power and efficient transportation, and has passed thousands of industrial verification experiment.



After three years of practice and improvement, the power system, steering system and braking system have been comprehensively optimized and improved, which is more suitable for all kinds of heavy loads and complex working conditions. It has the obvious advantages of high bearing capacity, high reliability, high safety and high economy.



In terms of power assembly, "Qilong" T-series heavy truck adopts domestic and foreign well-known high-power engine, optimizes the matching of accessory system, applies foreign well-known software to optimize the performance according to the use conditions of different models, reasonably matches with the transmission system, and improves the power and economic performance of the whole vehicle.



In the bearing system, "Qilong" T-series heavy truck according to the market segmentation and the use environment, pursues the good bearing life capacity and the appropriate smoothness. It meeting different user requirements about matching combination of suspension components assembly.



In the brake system, "Qilong" T-series heavy truck is designed to meet ECE regulations and gb12676, improve the brake system pressure, shorten the brake distance and improve the safety; adopt high-performance brake valve and quick connector to improve the system reliability.

Vehicle Model

 XGA3250D2WC

Mass parameter

Curb weight

16856kg

GVW

41500kg

Performances

Max Speed

79;86km/h

Min. turning diameter

20m

Grade ability(≥)

39%

Hill-hold ability()

20%

Fuel Tank

400L

Dimensions

Overall dimensions

Length

8975mm

Width

2550mm

Height

3490mm

Wheelbase

4200+1400mm

Wheel track

Front tire

2060mm

Rear tire

1860mm

Min.Clearance

281mm

Approach angle

17

Departure angle

25

Front overhang

1500mm

Rear overhang

1875mm

Cargo sizeAvailable length of frame

620025001800mm

Cab

Model

G7SMR

Passengers

2

Engine

Model

WD615.47

Displacement

9.726L

Output power

273kW

Mix torque speed

1500Nm

Clutch

Model

Pull type diaphragm spring clutch

Operation

Hydraulic manual

Transmission

Model

Standard 9JSD150A;

Operation

Flexible shaft

Forward ratio

12.57~1.00

Reverse ratio

13.14

Driven axle

Model

16T

Ratio

5.735.262

Brake type

Drum type

Differential lock

Differential lock between axles and wheels

Front axle

Capacity

9.5t

Brake type

Drum type

Wheel

Rim

8.5V-20

Tire

12.00R20-18PR

Frame

Type

Groove straight beam

Main beam

320908mm

Auxiliary beam

304908mm

Width of chassis structure

865mm

Suspension

Front

Type

Multi-spring

Amount of spring plate

10

Rear

Type

Multi-spring

Amount of spring plate

13

Steering System

Steering type

Circulating ball type hydraulic power

Ratio

23.27

Max pressure of pump

15MPa

Brake System

Rated working pressure

1MPa

Driving brake

Dual circuit pneumatic braking

Parking brake

Spring energy storage air brake

Assistant brake

Engine exhaust brake

Electric System

Voltage

24V

Generator power

2.2kw

Battery voltage and Capacitance

212 V /165Ah
