XCMG Brand Electric Lift XG1012DC China New 10m Self-propelled
Mobile Electric Scissor Lift.
New
scissor work platform developed by XCMG has the work height at 12m, the vehicle
width at 1.17m, the rated load at 450kg, max. platform length at 3.2m and max.
gradeability at 25%. This vehicle features compact structure, advanced
performance, completed safety devices, specially suitable for construction.
In
addition. It is free of any pollution, with steady lifting / lowering, easy
control and maintenance. Therefore, this kind of platforms are widely applied
to warehouses, factories, airports, and train stations, especially the narrow
work sites.
Advantages
and features
1.Effective
and energy-saving electric-drive system features zero emission and low noise.
2.Active
protective mechanism such as pothole protective mechanism and the
self-developed safety control system meeting the customer needing for safety,
reliability and intelligence.
3.Narrow-
structure design enables the complete vehicle to easily pass through a single
gateway; foldable fence could make the transportation easier. “Zero Turning
Radius ”is unique and enable machine to corner in narrow room.
4.Maximum
payload at 230kg, leading the industry.Maximum traveling speed 4.5 km/h and 25%
gradeability make the driving easier.
|
Item |
Unit |
XG1012DC |
|
Dimensions (LxWxH) |
mm |
2477x1170x2355 |
|
Wheel base |
mm |
1877 |
|
Wheel track |
mm |
1043 |
|
Min. Ground clearance (pit protector lifting / decline) |
mm |
100/20 |
|
Platform dimensions(LxWxH) |
mm |
2277x1120x1263 |
|
Platform dimensions Platform extension length |
mm |
900 |
|
Vehicle center of mass position Horizonal distance from
front axis |
mm |
950 |
|
Vehicle center of mass position Height of center of
mass |
mm |
613 |
|
Total weight |
kg |
2620 |
|
Max. Platform height |
m |
8 |
|
Min. Platform height |
m |
1.2 |
|
Max. Working height |
m |
10 |
|
Min. Turning radius (inner wheel / outer wheel) |
m |
0/2.3 |
|
Platform rated load |
kg |
450 |
|
Extension platform rated load |
kg |
115 |
|
Platform lifting time |
s |
29-40 |
|
Platform decline tine |
s |
34-45 |
|
Max. Walking speed (low position) |
km/h |
4.0 |
|
Max. Walking speed (high position) |
km/h |
0.8 |
|
Max. gradeability |
% |
25 |
|
Tilt warning angle（side / forward and backward） |
° |
1.5/3 |
|
Lifting /walking motor Rated power |
kW |
3.3/0.75 |
|
Battery Voltage |
v |
24 |
|
Battery Capacity |
Ah |
225 |
|
Battery Manufacturer |
— |
Trojan/Leoch |
_副本.jpg)
_副本.jpg)

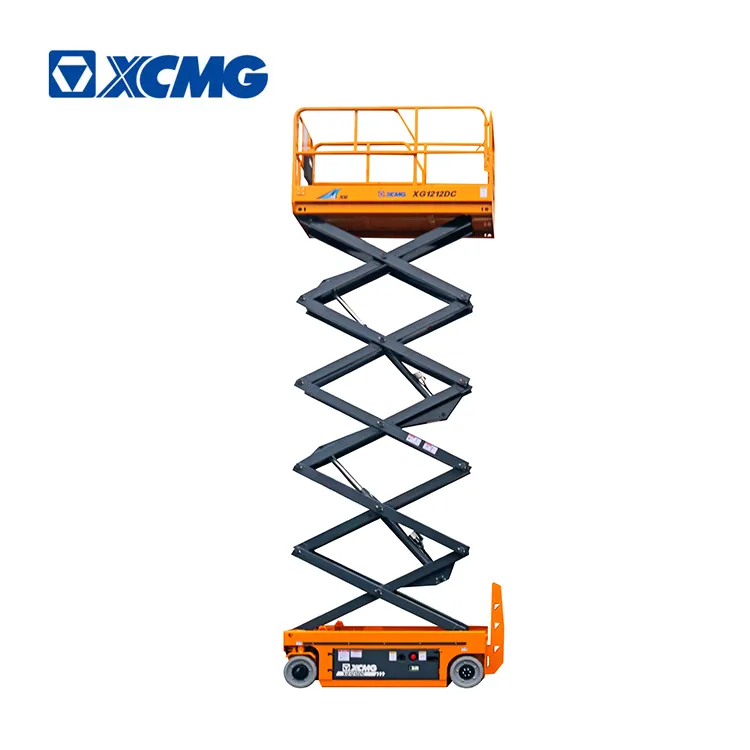

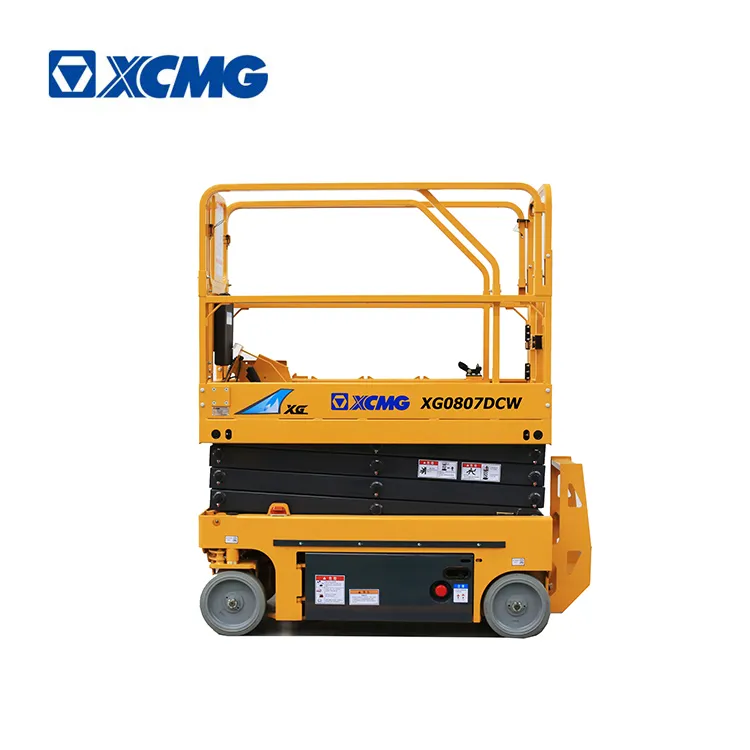

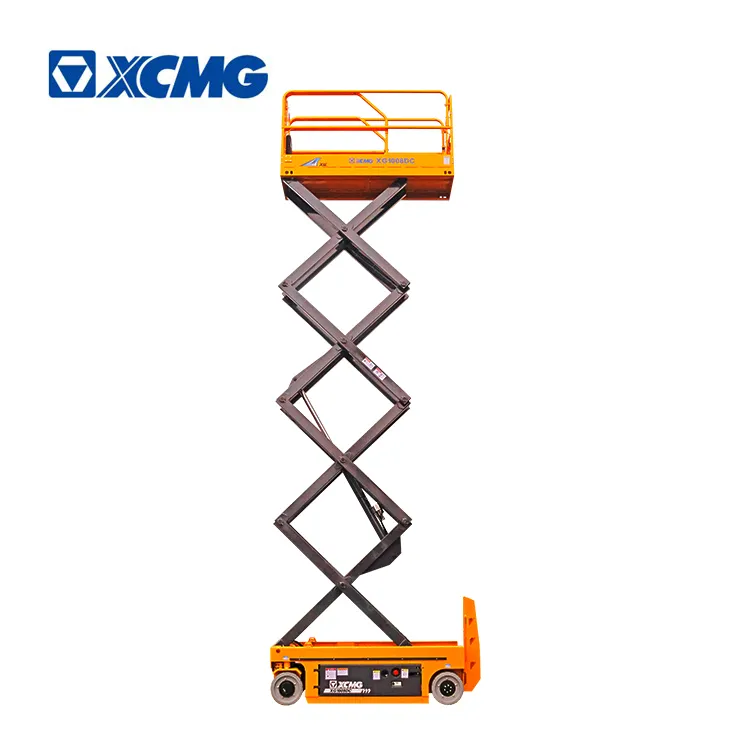

u More scissor lift
