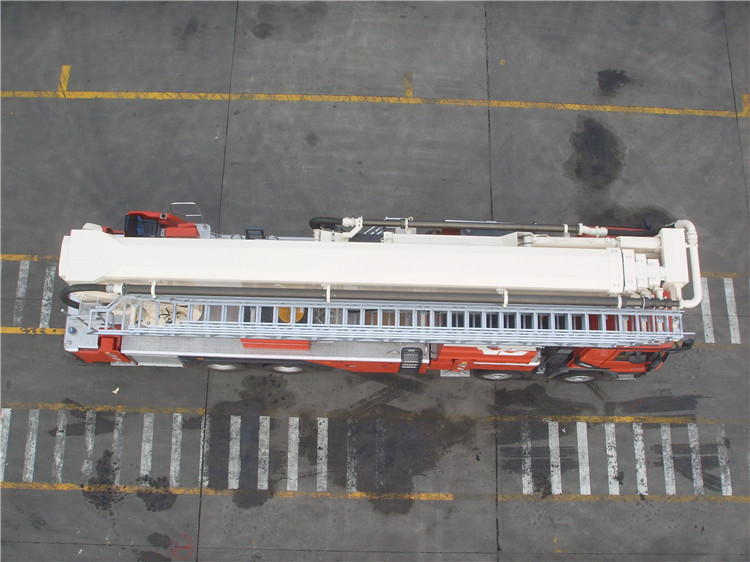

XCMG official 54m new aerial ladder fire truck DG54M1
water telescopic platform tower fire trucks.
DG54M1 Aerial Platform Fire Truck is a main battle
vehicle that integrates functions of water tower fire truck, aerial spraying
truck and aerial fire truck, which is widely applied in fire fighting and
rescue operation in cities and towns, mine, oil field and plant as well as
other medium and high-rise buildings, in addition, it also is the first choice
for medium and high rise building fires, rescue of persons in distress and
properties.
1. Professional appearance molding design with pretty
appearance is adopted in the complete machine, and the operation and usage is
humanization with good effect.
2. The platform is equipped with manual and automatic
leveling functions, with high accuracy and fast speed.
3. Wider operation scope. The height of limit operation
reaches 54m, and the maximum operation range reaches 23 25m (regional control),
the test depth is 6m underground.
4. The obstacle crossing capability is more than 10m.
5. The outrigger can conduct unilateral operation,
satisfy the narrow space operation requirements.
|
6XCMG provides cost-effective
customized services, the solutions and quotations upon receiving your
personalized demand. |
|||
|
Boundary dimension |
11760×2500×4000mm |
||
|
Full mass |
41600kg |
||
|
Maximum speed |
≥90km/h (electric speed limit) |
||
|
Minimum turning diameter |
≤24m |
||
|
Approach angle |
≥23° |
||
|
Departure angle |
≥9° |
||
|
Maximum gradeability |
≥25% |
||
|
|
Longitudinal span |
6700mm |
|
|
Horizontal span |
8000mm |
||
|
Work platform load |
500kg |
||
|
Maximum working height |
54m |
||
|
Maximum operating radius |
25m |
||
|
|
The elevating angle of telescopic boom is 0 to 83
degrees, and that of boom NO.2 and telescopic booms is 0 to 177 degrees. |
||
|
Rotation scope |
360° full-rotation |
||
|
Spread time of outrigger |
≤35s |
||
|
Time for lifting the boom to rated height
and rotating 90° |
≤150s |
||
|
Maximum slewing speed |
0.1~1.0r/min |
||
|
|
Rated flow (L/s) |
≥70 |
|
|
Rated pressure (MPa) |
≥1.6 |
||
|
|
|
Model |
PLKD120ZB-3480 |
|
Rated flow (L/s) |
64 |
||
|
Rated pressure (MPa) |
≤1.0 |
||
|
Range (m) |
≥65m |
||
|
|
Model |
PLKD120ZB-3480 |
|
|
Rated flow (L/s) |
64 |
||
|
Rated pressure (MPa) |
≤1.0 |
||
|
Range (m) |
≥60m |
||
|
The swing range of the monitor head |
-45~+60 |
||
|
-80~+90 |
|||
