XCMG 2019 year used Hydraulic Crawler Digger XE155DK

BrandName
XCMG
Bucketcapacity
0.72m3
Certification
Basic Info.
View All >
BrandName
XCMG
Bucketcapacity
0.72m3
Certification
ModelNumber
XE155DK
MachineWeight
14600kg
MaximumDiggingDepth
5535mm
XCMG Reconditioned Machine
XCMG Reconditioned Machine
Certified
Certified for 0 years
5.0/5
Rating
Within 24 hours
Response Time
2024-09-03
Year of establishment
Company Adress:
C1c5,software Park,Xuzhou,Jiangsu,China
Follow Visit Store

Description

Recommendation

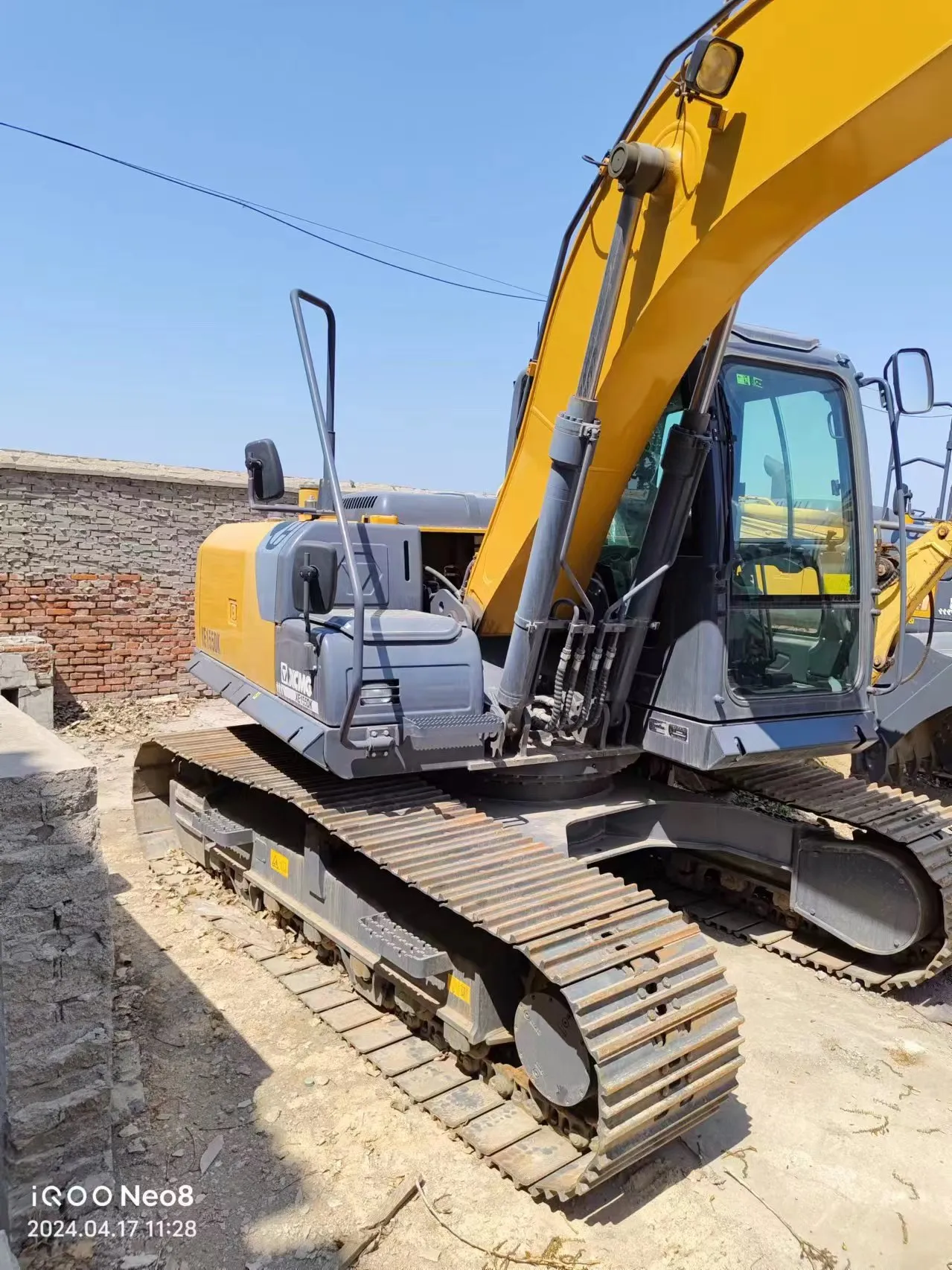

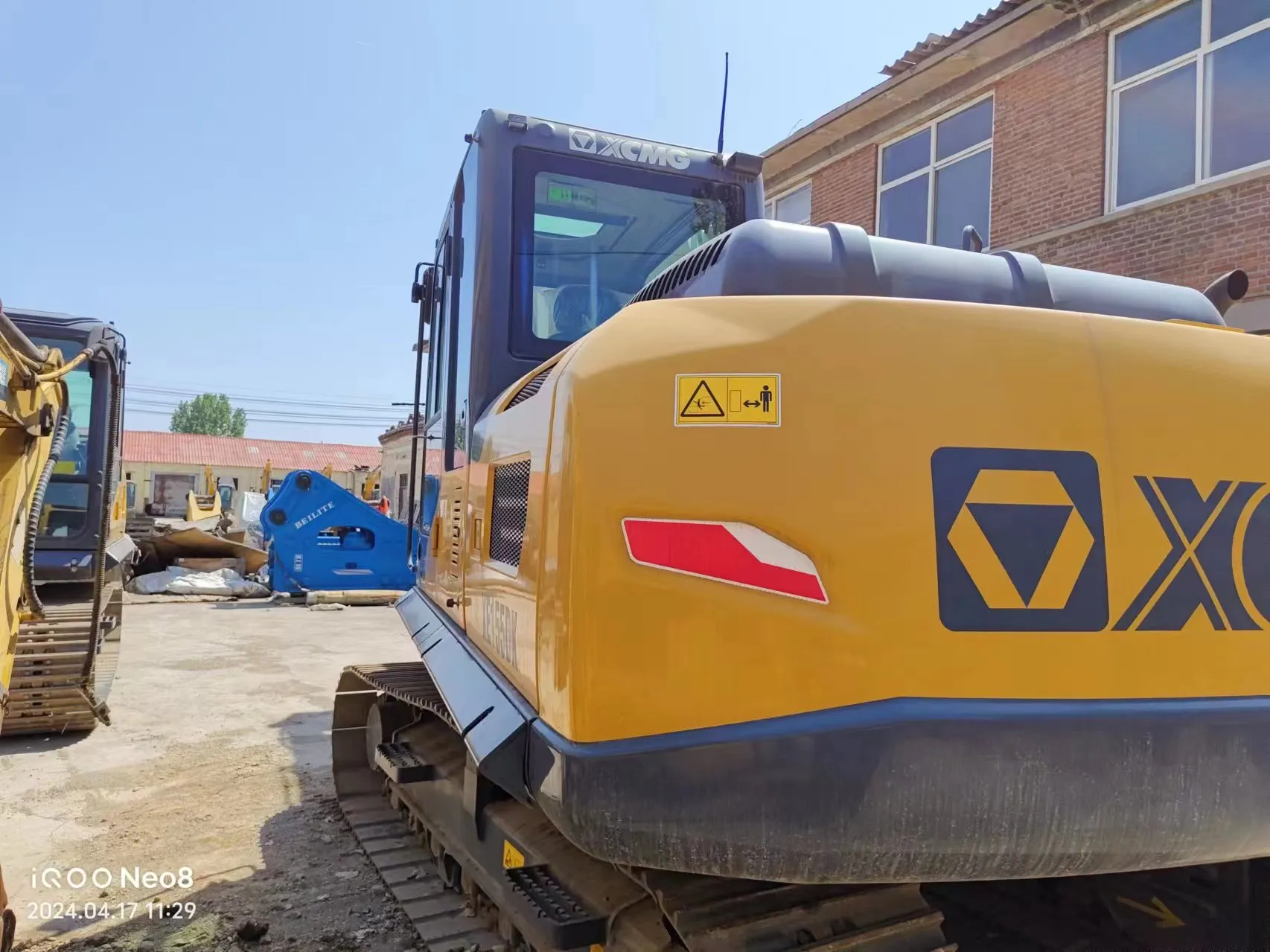

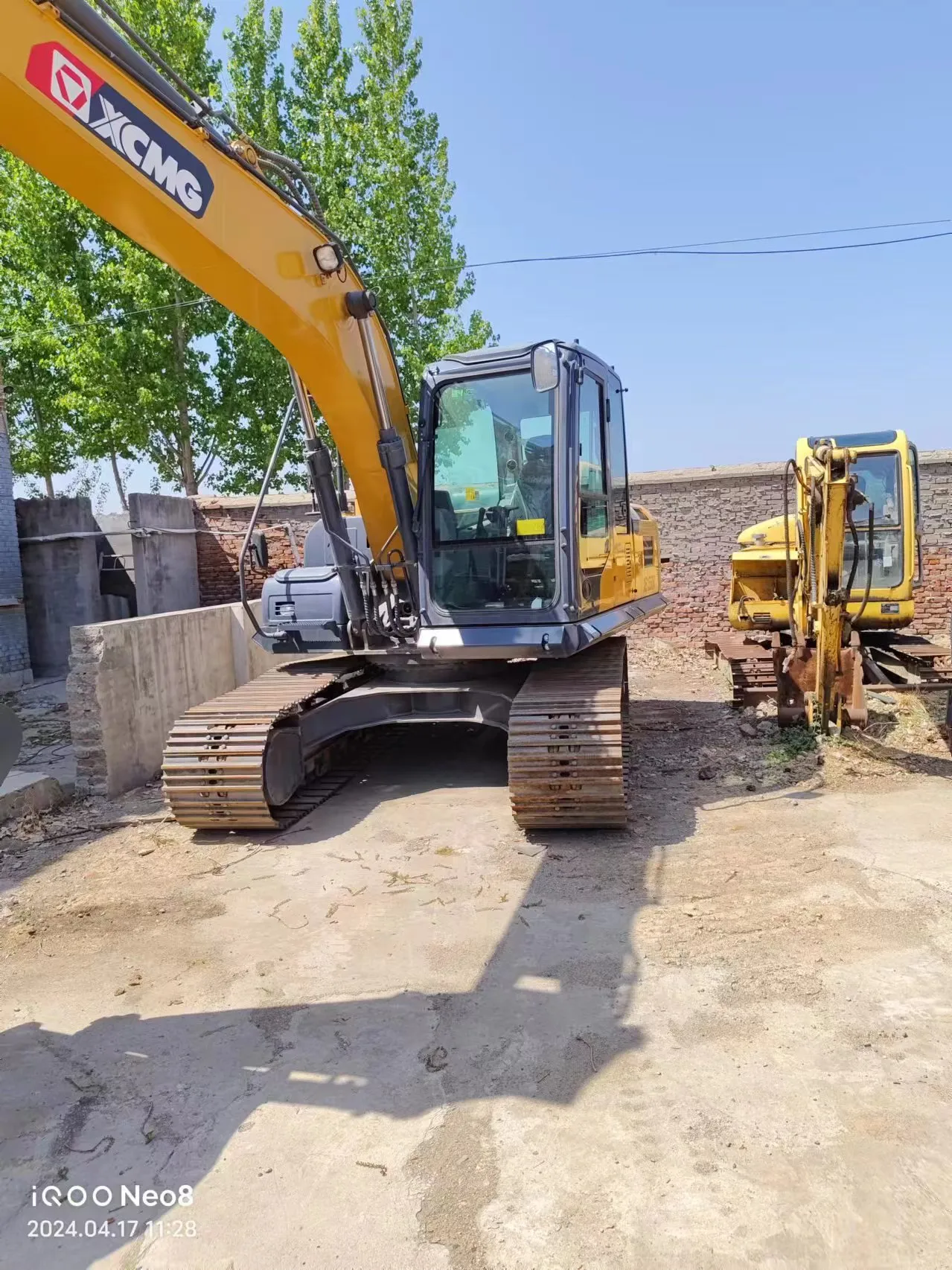

XCMG 2019 year used Hydraulic Crawler Digger XE155DK



The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.



The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.



The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.



The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.



Sales model
Unit
XE155DK
Operating weight
Kg
14600
Bucket capacity
m³
0.32-0.71

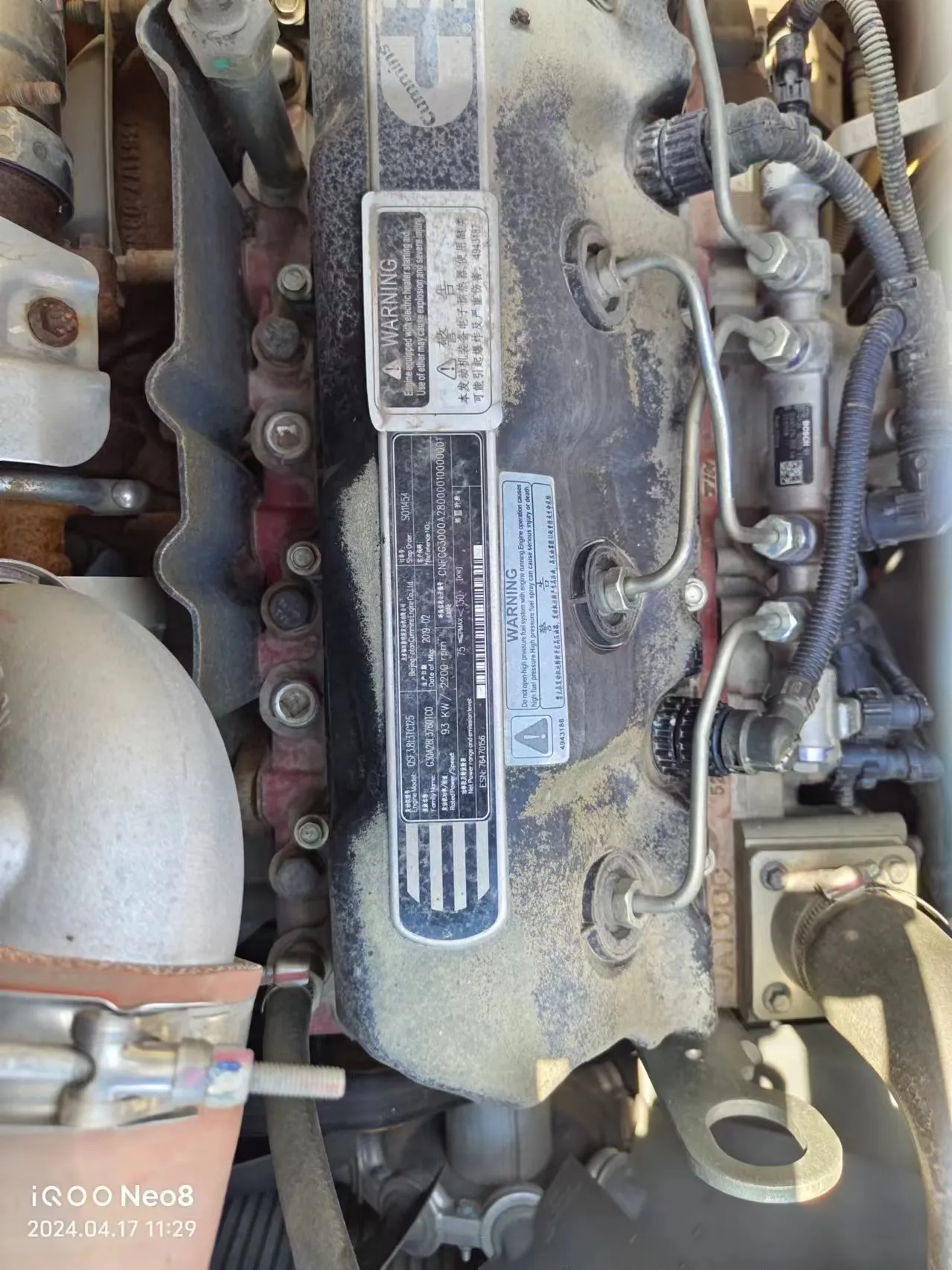

Engine
Model
/
QSF3.8
Direct injection
/
√
Four strokes
/
√
Water cooling
/
√
Turbo-charging
/
√
No. of cylinders
/
4
Output power
kw/rpm
93/2200
Maximum torque/speed
N.m/rpm
500/1300
Displacement
L
3.8

Main performance
Travel speed
km/h
5.3/3.2
Swing speed
r/min
11.7
Gradeability
°
35
Ground pressure
kPa
37
Bucket digging force
kN
106.9
Arm digging force
kN
73.4
Maximum traction
kN
134

Hydraulic system
Rated flow of main pump
L/min
123.5*2
Main safety valve pressure
MPa
34.3/37
Travel system pressure
MPa
34.4
Rotary system pressure
MPa
25
Pilot system pressure
MPa
3.9

Oil Capacity
Fuel tank capacity
L
260
Hydraulic tank capacity
L
105
Engine oil capacity
L
11.7

Appearance size
Overall length
mm
7795
Overall width
mm
2672
Overall height
mm
2900
Width of platform
mm
2672
Track length
mm
3658
Overall width of chassis
mm
2590
Track width
mm
600
Length to center of rollers
mm
2910
Track gauge
mm
1990
Counterweight clearance
mm
948
Min. ground clearance
mm
477
Min. tail swing radius
mm
2325
Track height
mm
836

Working scope
Max. digging height
mm
8649
Max. dumping height
mm
6185
Max. digging depth
mm
5535
Maximum depth cut for 2240mm(8 ft) level bottom
mm
5324
Max. vertical wall digging depth
mm
4697
Max. digging radius
mm
8304
Min. swing radius
mm
2445

Standard configuration
Length of boom
mm
4600
Length of arm
mm
2520
Bucket capacity
m³
0.65

Optional configuration
Length of boom
m³
/
Length of arm
m³
2100/3010
Bucket capacity
m³

0.32/0.4/0.71 Earth Working bucket
0.52 Rock bucket
