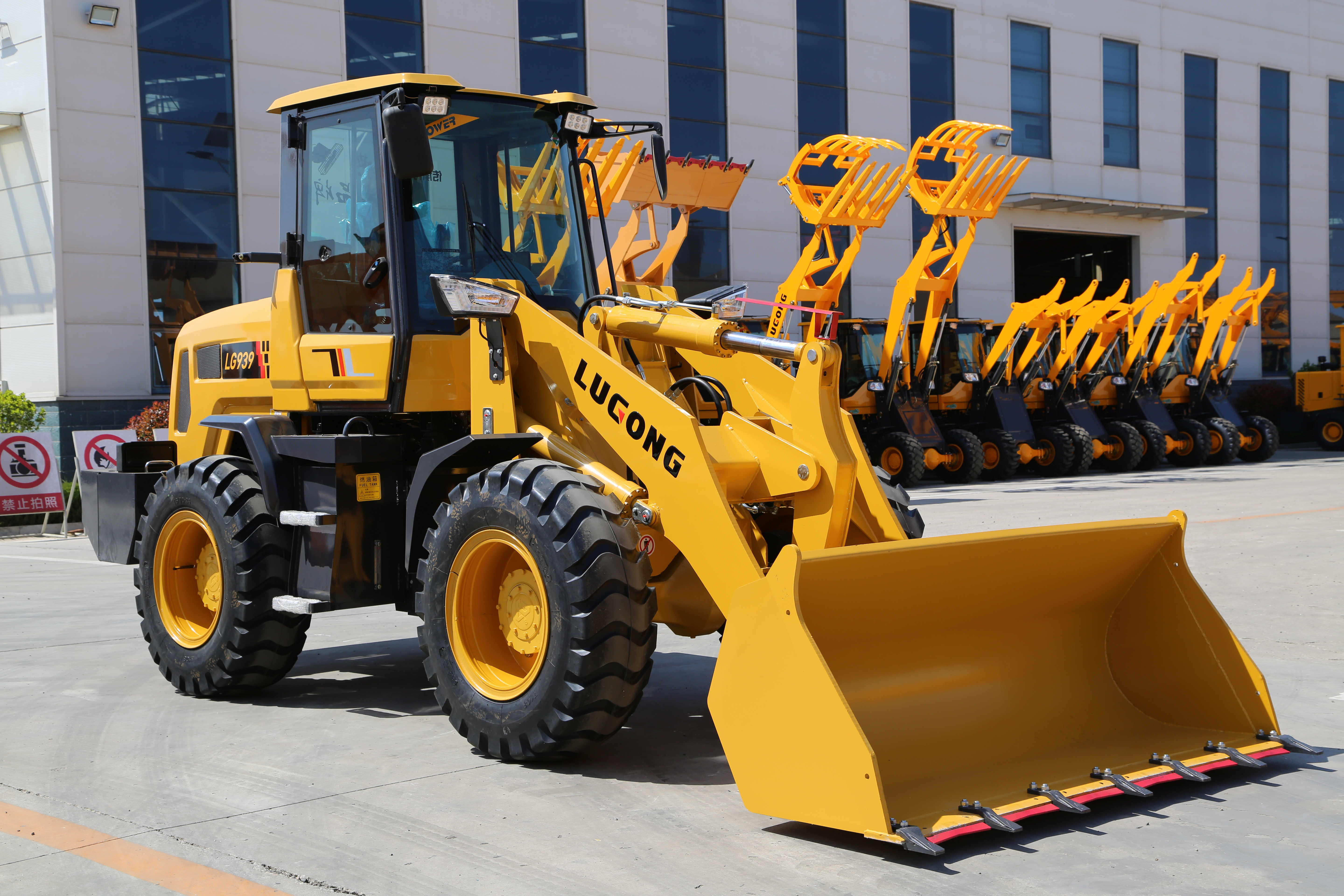

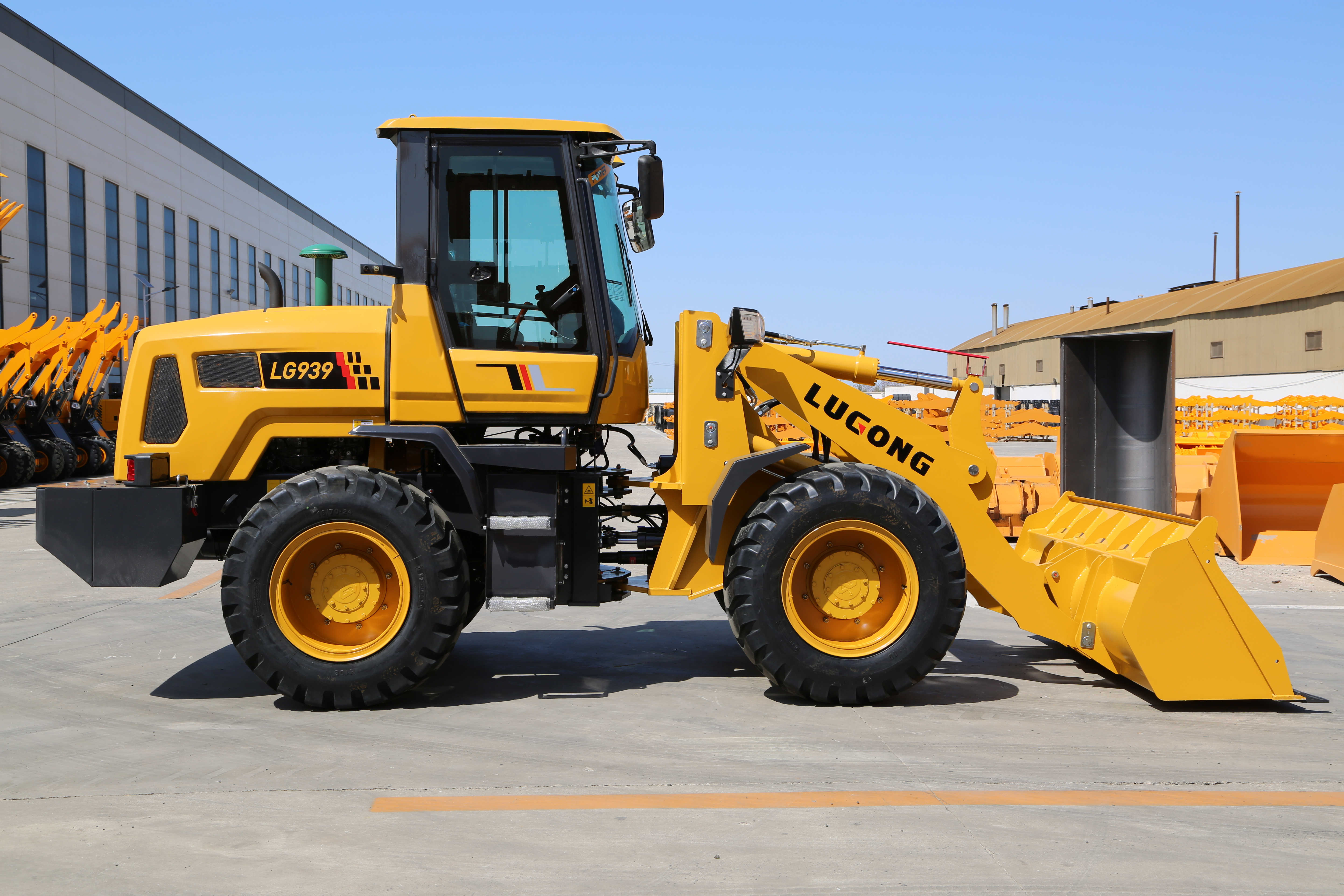

LUGONG LG939 Compact China Loaders 1m³ Front End loaders Price
Description
Recommendation
This kind of junction can protect oil from overflowing.
We developed them independently. Their capability is better.
Our cab is bigger and more comfortable.
same techinics as car
New style lamp is more fashionable and designed by ourselves
| main technical parameters | transmission | ||
| bucket capacity | 1.0m³ | type | hydraulic torque converter |
| rated load | 2200kg | box | automatic 280 |
| machine weight | 4950kg（+460） | gear shift | F1/R1,double H/L |
| overall dimension (mm) | 6200x2150x2950mm | axle | AWD, LG2.5T big hub reduction |
| wheel base | 2500mm | tyre | |
| wheel track | 1680mm | tyre size | 16/70-24 |
| bucket width | 2200mm | working hydraulic system | |
| Max. dumping height | 3500mm | operating type | mechanical single joystick |
| Max. dumping height | 800mm | lifting time | 6.5S |
| turning radius | 4500mm | falling time | 5.5S |
| Min. ground clearance | 380mm | braking system | |
| Engine | service brake | air hydraulic disc brake | |
| model | Yuchai 4105 turbo | parking brake | hand operated caliper brake |
| pattern | in-line,4 cylinder | optional: A/C, Cabin heater, forklift | |
| rated power/speed | 85kw/116HP/2400 | Pallet fork, log grapple, grass fork | |
| weight | 360kg | ||
1. Drawing stamping , electrophoresis painting and arc design.
2.Design of three-layer articulation beam
*Three-layer articulation steering design uniform stress, prevent deformation;
*Lengthened and widened hinge plate wedge in column get better chassis strength, more durability;
*Trajectory coincidence technology reduce engine load and tire wear, get small turning circle and more flexible operation.
3. Axle
*Patented axle, speed ratio changed from 6:37 to 7:41, stronger power.
*Casting process, compared with other brands in the same specification, the weight is increased by 200kg, stronger and more durable.
4. Cab
*Frame is welded by high-strength rectangular materials.
*drawing stamping process
*arc design
*electrophoresis painting: high anticorrosion
*no dead angle of vision with one sheet of front glass
*air-damped seat; Germany tech. Design
*high-efficiency conditioner
5.Cooling System
*High level water tank, Large hole grid with 32mm double-row radiating pipe increase radiation effect and not be blocked;
*Tank temperature not exceed 80ºC even continuous working 20 hours at surface temperature 50ºC.
6. Appearance
*Drawing stamping sheet metal gets high structural strength;
*Arc design brings good visual effect;
*Electro-coating ensures excellent anti-corrosion property.
7. More Detail
*Separate design of front and rear brake pumps avoid brake failure;
*Integrated design of pump and valve, cancel flexile hose, increase steering performance and safety;
*H type joint with two sealing ring ensure lifelong no leakage.
*New LED lights bring better brightness and longer life;
*Pickling and phosphating treated oil tank avoid block in hydraulic system;
*Fast joint on air cylinder for blowing dust gun, inflation and grease gun;
*Muffler covered with heat resistant material avoid body scalding and components ageing;
*Shanghai "Steel" brand 18PR Nylon tire.
optional: A/C, Cabin heater, forklift
*First-rate manufacturer of Compact Wheel Loader;
*Founded in 2000. Land 200,000 Sq. meters;
*Employee more than 1100;
*Sales more than 40,000 Loaders in 2020
