XCMG 2018 Used Excavator XE225DK 20 Ton Used Excavator With Excavator Bucket Price
BrandName
XCMG
Bucketcapacity
1.0-1.2m³
Certification
CE/ISO9001
Basic Info.
View All >
BrandName
XCMG
Bucketcapacity
1.0-1.2m³
Certification
CE/ISO9001
ModelNumber
XE225DK
MachineWeight
22500kg
MaximumDiggingDepth
6680mm
XCMG Reconditioned Machine
Certified for
0
years
5.0/5
Rating
Within 24 hours
Response Time
2024-09-03
Year of establishment
Company Adress:
C1c5,software Park,Xuzhou,Jiangsu,China
Description
Recommendation
XCMG 2018 Used Excavator XE225DK 20 Ton Used Excavator With Excavator Bucket Price

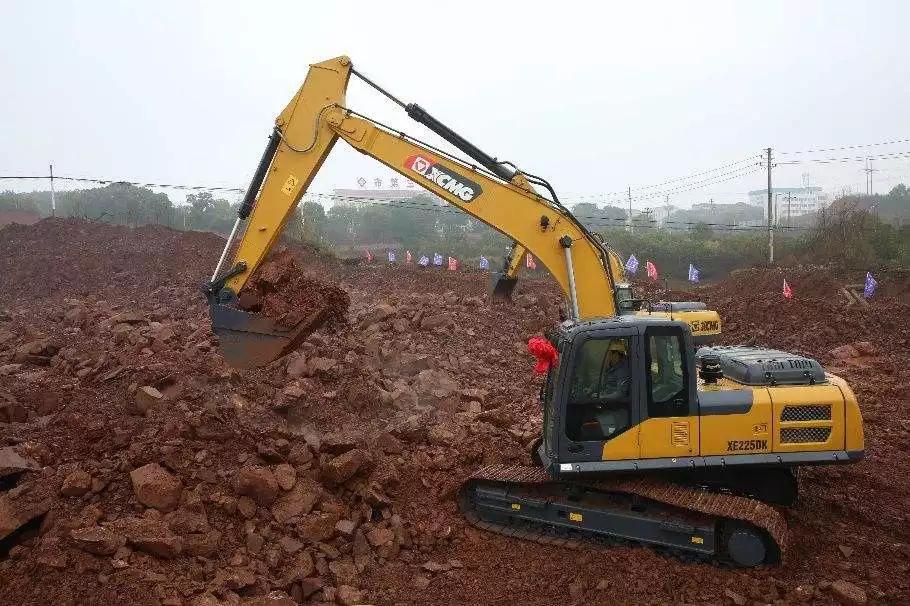

XE225DK excavators are widely used in earthwork engineering, municipal construction, highway and bridge construction, digging and building ditches, farmland water conservancy construction, small-scale mining operations and other projects.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
| Sales model | Unit | XE225DK | |
| Operating weight | Kg | 21900 | |
| Bucket capacity | m³ | 1.0-1.2(1.14) | |
| Engine | Model | / | 4HK1X |
| No. of cylinders | / | 4 | |
| Output power | kw/rpm | 140/2000 | |
| Maximum torque/speed | N.m/rpm | 650/1500 | |
| Displacement | L | 5.3 | |
| Main performance | Travel speed | km/h | 5.3/3.0 |
| Swing speed | r/min | 11.8 | |
| Gradeability | ° | ≤35 | |
| Ground pressure | kPa | 47.2 | |
| Bucket digging force | kN | 149 | |
| Arm digging force | kN | 111 | |
| Maximum traction | kN | 184 | |
| Hydraulic system | Rated flow of main pump | L/min | 2×225 |
| Main safety valve pressure | MPa | 34.3/37 | |
| Travel system pressure | MPa | 34.3 | |
| Rotary system pressure | MPa | 27.5 | |
| Pilot system pressure | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 400 |
| Hydraulic tank capacity | L | 220 | |
| Engine oil capacity | L | 19.5 | |
| Appearance size | A Overall length | mm | 9625 |
| B Overall width | mm | 2990 | |
| C Overall height | mm | 3100 | |
| D Width of platform | mm | 2830 | |
| E Track length | mm | 4255 | |
| F Overall width of chassis | mm | 2990 | |
| G Track width | mm | 600 | |
| H Length to center of rollers | mm | 3462 | |
| I Track gauge | mm | 2390 | |
| J Counterweight clearance | mm | 1050 | |
| K Min. ground clearance | mm | 486 | |
| L Min. tail swing radius | mm | 2890 | |
| M Track height | mm | 942 | |
| Working scope | A Max. digging height | mm | 9620 |
| B Max. dumping height | mm | 6780 | |
| C Max. digging depth | mm | 6680 | |
| D Maximum depth cut for 2240mm(8 ft) level bottom | mm | 6500 | |
| E Max. vertical wall digging depth | mm | 5715 | |
| F Max. digging radius | mm | 9940 | |
| G Min. swing radius | mm | 3530 | |
| Standard configuration | Length of boom | mm | 5680 |
| Length of arm | mm | 2910 | |
| Bucket capacity | m³ | 1.14 | |
| Optional configuration | Length of boom | m³ | / |
| Length of arm | m³ | 2400 | |
| Bucket capacity | m³ | 1.2/1.3 Earth Working bucket | |
| 0.93/1.0 Strengthened bucket | |||
| 0.9/1.0 Rock bucket | |||
