LW500KN front end loader prices | XCMG LW500KN 3 cubic meters 5 ton wheel loader for sale
Description
Recommendation

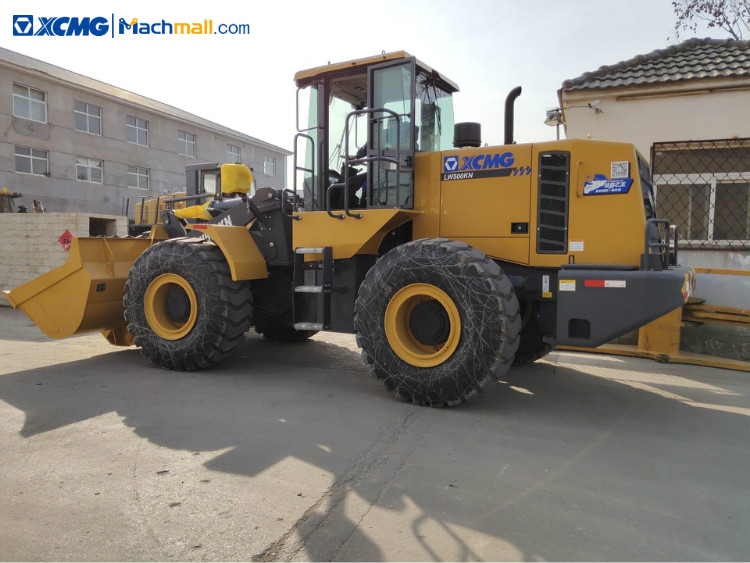

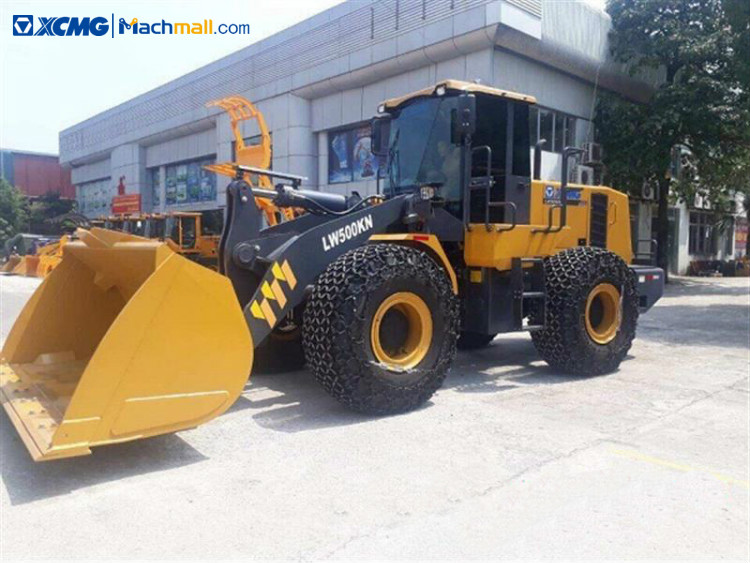

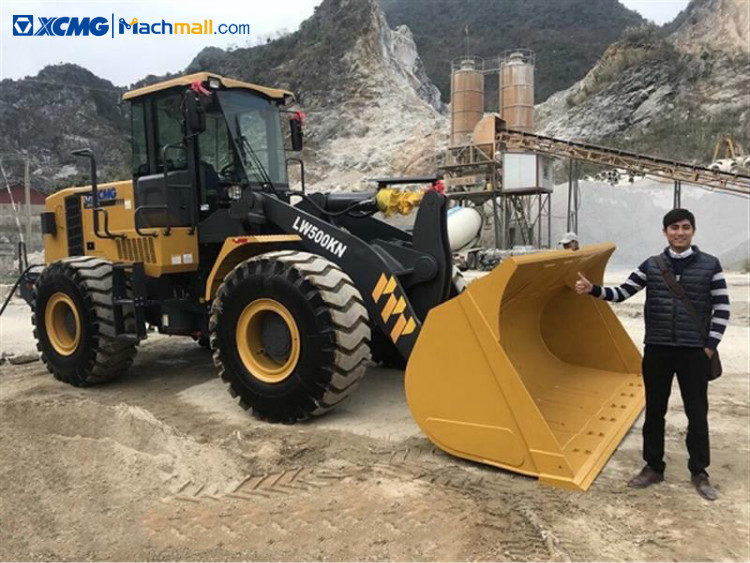

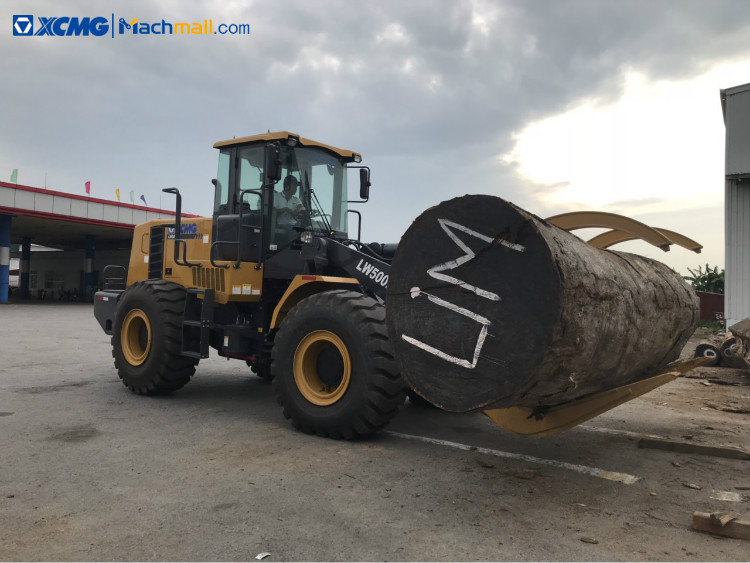

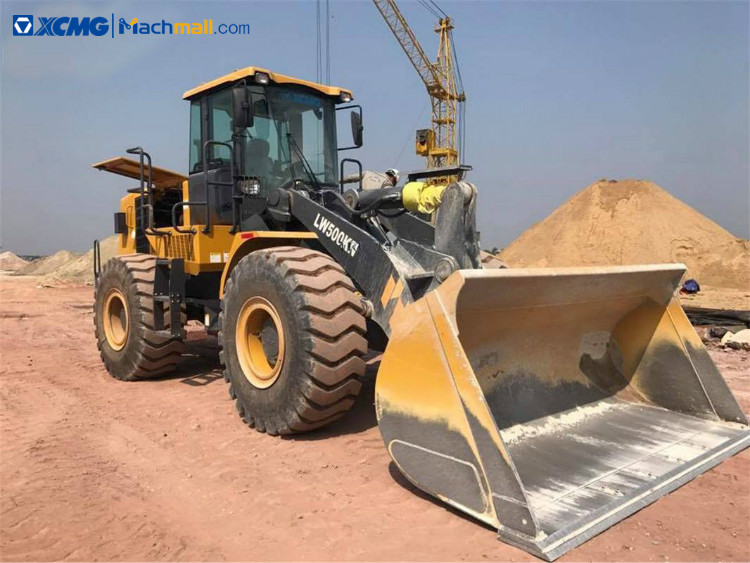

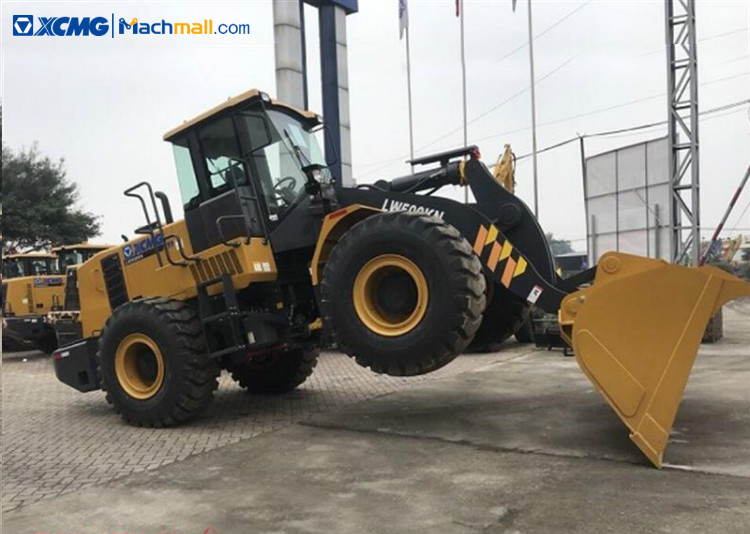

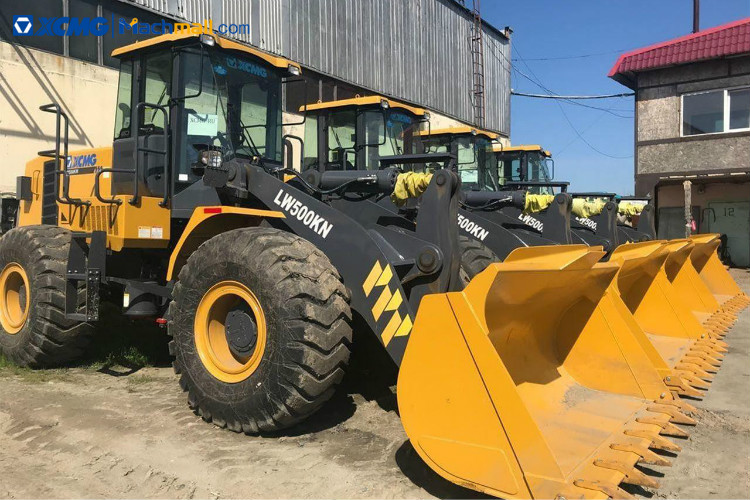

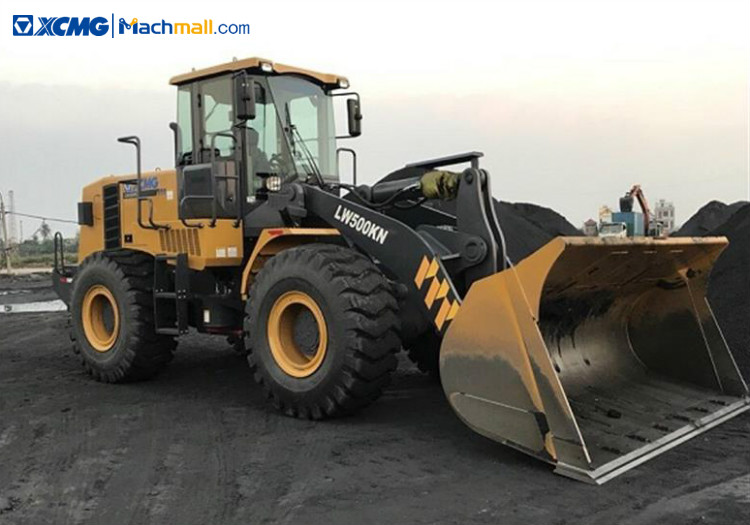

XCMG LW500KN 3 cubic meters 5 ton front end loader.
1, XCMG LW500KN front end loader: heavy-load design, robot welding, thick plate, secure welding joint, high anti-torque coefficient and high overload capacity. Technology of finite element analysis is employed to decrease stress concentration and eliminate local weaknesses. Frame is resistant to impact and overload and capable in various overload working conditions.
2, Alignment design of main hinge joint decrease s turn radius and reduces tire wear and energy loss. Large spacing between upper and lower hinged plates, high structural strength and sufficient repair space. The first manufacturer to apply double-row tapered roller bearing to main hinge joint, featuring strong bearing capacity and long service life.
3, Implementation of “service throughout full life cycle” brings about trouble-free lifetime experience! Marketing service network spread around the world covers extensive areas.
4, First-rate hydraulic element, featuring low pressure loss, little system radiation and high part reliability. Hydraulic pump of international brand provides stronger hydraulic power. Italian α hydraulic hose featuring resistance to heat and pressure, and long service life. Two layers of sealing, i.e. 24° cone plus O-ring up to DIN international standard are employed for hydraulic pipeline, which features better tightness and effectively resolves the issue of leakage. Imported materials are used for harness with optimized process layout for guaranteeing circuit system reliability.
|
Overall 1ength (bucket on the ground) |
8225 mm |
|
Overall width |
2850 mm |
|
Bucket width |
3016 mm |
|
Overall height |
3515 mm |
|
Wheel base |
3300 mm |
|
Tread |
2250 mm |
|
Min. ground clearance |
440 mm |
|
4.2.2 Specification |
|
|
Rated capacity |
5000 kg |
|
Bucket volume |
2.7 m3 (Bucket for rock) |
|
3 m3 (Standard bucket) |
|
|
3.5 m3 (Bucket for light material) |
|
|
4 m3 (Bucket for light material) |
|
|
4.5 m3 (Bucket for light material) |
|
|
Operating weight |
17200kg±300kg |
|
ForwardⅠ/Reverse |
6.5/6.5 km/h |
|
Forward Ⅱ/Reverse |
11/11 km/h |
|
Forward Ⅲ/Reverse |
24/24 km/h |
|
Forward/Reverse |
38 km/h |
|
Max. tractive force |
165±5kN |
|
Max. climbing gradient |
30 º |
|
Max. dumping angle |
45 º |
|
Max. dumping height |
≥3090 mm (main cutting edge) |
|
Dumping reach |
≥1130 mm (main cutting edge) |
|
Dumping angle of bucket |
≥45 º |
|
Breakout force of bucket |
170 KN |
|
Lifting time of boom |
≤6.5 s |
|
Total cycling time |
≤11 s |
|
Outside of the bucket |
6910 mm |
|
Center of the tyre |
5925 mm |
|
Turning angle of the chassis |
38 º |
|
Oscillating angle of the rear axle |
±12 º |
More About Front End Loader
